Laminar Flow Cabinet

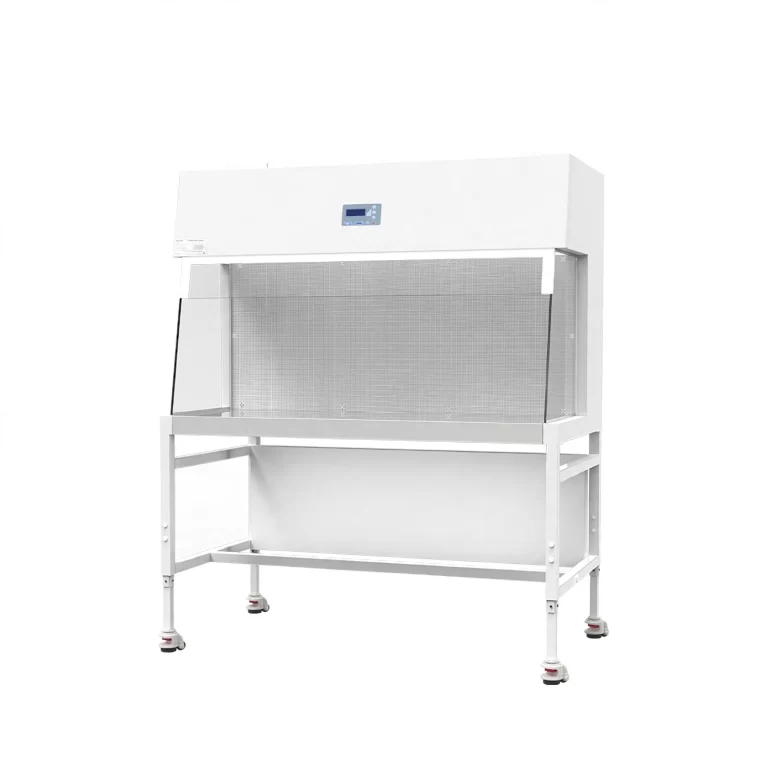

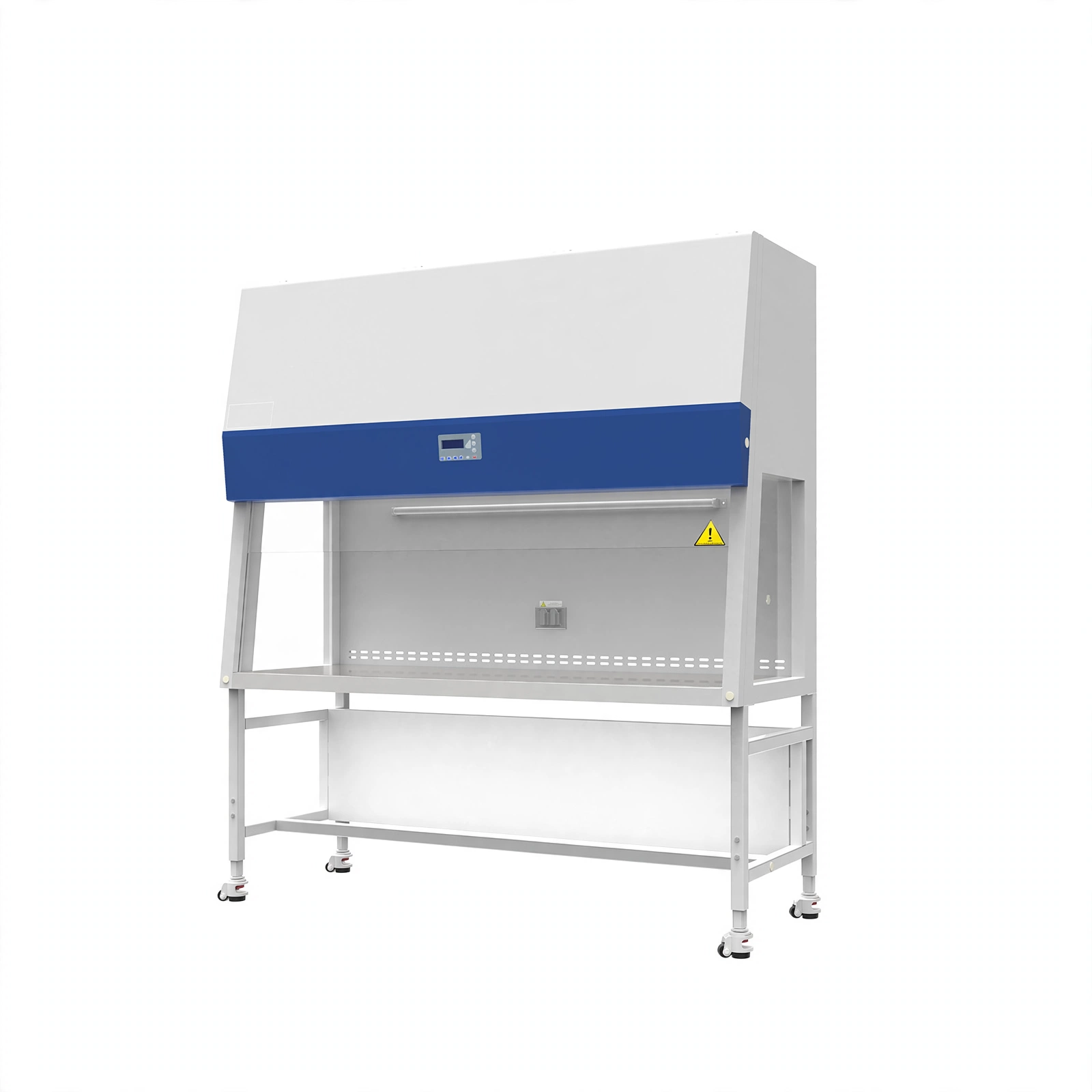

ETL Certified Vertical Laminar Flow Cabinet

Model BBS-V800 BBS-V1100 BBS-V1300 BBS-V1500 BBS-V1800

The ETL Certified Vertical Laminar Flow Cabinet is a highly efficient, contamination-free workspace designed to protect samples and products from particulates in laboratory environments.

Power
900W / 1110W / 1110W…
Noise
≤68dB
Dimensions
800*700* mm / 1100*70…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. ETL certified, satisfy north american market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).

4. Interlock function: UV lamp and blower, LED lamp.

Technical Parameters:

Model BBS-V800 BBS-V1100 BBS-V1300 BBS-V1500 BBS-V1800
External Size(W*D*H) 800*700*(2090~2340)mm 1100*700*(2090~2340)mm 1300*700*(2090~2340)mm 1500*700*(2090~2340)mm 1800*700*(2090~2340)mm
Internal Size(W*D*H) 700*575*625mm 1000*575*625mm 1200*575*625mm 1400*575*625mm 1700*575*625mm
Work Surface Height

760~1010mm
Max Opening

480mm
Display

LCD display
Airflow Velocity

80~99fpm

Material

Working Area: 304 stainless Steel

Main Body: Cold-rolled steel with anti-bacteria powder coating

Front Window: Motorized, 5mm toughened glass, anti-UV
Pre-Filter

Polyester fiber
HEPA Filter

One, 99.995% efficiency at 0.3μm
Noise

≤68dB(A)
Illumination

≥300lx
Waterproof Sockets

One socket(Double type), America standard, Max. Power: 500W
Power Supply

103.5~126.5V, 60Hz, 10A
Consumption 900W 1110W 1110W 1110W 1250W
UV Lamp 20W*1 30W*1 30W*1 40W*1 40W*1
LED Lamp 10W*1 14W*1 14W*1 18W*1 22W*1
Standard Accessory

Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket
Package Size(W*D*H) 945*990*1610mm 1245*990*1610mn 1445*990*1610mm 1645*990*1610mm 1945*990*1610mm
Gross Weight 190kg 230kg 265kg 280kg 320kg
The details

Specifications

Model
BBS-V800 / BBS-V1100 / BBS-V1300 / BBS-V1500 / BBS-V1800
External Size(W*D*H)
800*700*(2090~2340)mm / 1100*700*(2090~2340)mm / 1300*700*(2090~2340)mm / 1500*700*(2090~2340)mm / 1800*700*(2090~2340)mm
Internal Size(W*D*H)
700*575*625mm / 1000*575*625mm / 1200*575*625mm / 1400*575*625mm / 1700*575*625mm
Work Surface Height
760~1010mm
Max Opening
480mm
Display
LCD display
Airflow Velocity
80~99fpm
Material
Working Area: 304 stainless Steel
Material
Main Body: Cold-rolled steel with anti-bacteria powder coating
Material
Front Window: Motorized, 5mm toughened glass, anti-UV
Pre-Filter
Polyester fiber
HEPA Filter
One, 99.995% efficiency at 0.3μm
Noise
≤68dB(A)
Illumination
≥300lx
Waterproof Sockets
One socket(Double type), America standard, Max. Power: 500W
Power Supply
103.5~126.5V, 60Hz, 10A
Consumption
900W / 1110W / 1110W / 1110W / 1250W
UV Lamp
20W*1 / 30W*1 / 30W*1 / 40W*1 / 40W*1
LED Lamp
10W*1 / 14W*1 / 14W*1 / 18W*1 / 22W*1
Standard Accessory
Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket
Package Size(W*D*H)
945*990*1610mm / 1245*990*1610mn / 1445*990*1610mm / 1645*990*1610mm / 1945*990*1610mm
Gross Weight
190kg / 230kg / 265kg / 280kg / 320kg
