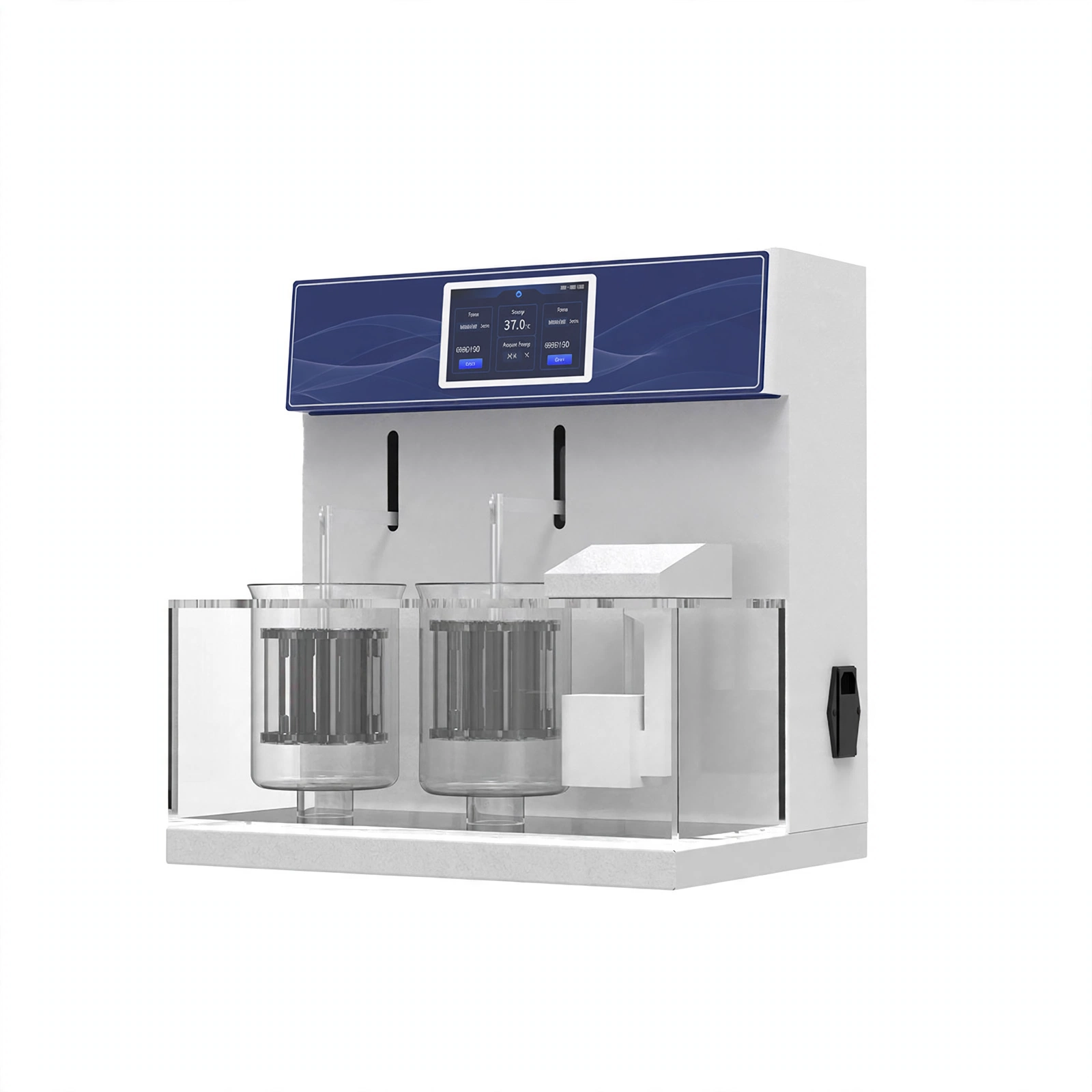

The disintegration tester is a pharmacopeial instrument designed to assess the disintegration time of tablets, capsules, and pills in compliance with the Chinese Pharmacopoeia. It is critical for quality control of solid dosage forms and pharmaceutical formulation development. By measuring disintegration duration, it evaluates drug release kinetics to ensure in vivo performance meets specifications. This instrument plays a vital role in production monitoring, quality assurance, and formulation optimization.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Dual-basket system for simultaneous disintegration testing.
2. Two independent baskets enable parallel experiments.
3. Electronic temperature sensors monitor and display real-time water bath and vessel temperatures.
4. Automatic temperature control at 37. 0℃(pharmacopeia-compliant) with customizable presets.
5. Programmable lifting cycle duration(default: 15 minutes; adjustable bidirectionally).
6. User-friendly capacitive touchscreen with high-resolution interface.
7. Overheat alarm and automatic protection for water bath temperature.
Technical Parameters:
| Model | BBJ-2 |
| Basket | 2pcs |
| Beaker Capacity | 1000ml |
| Basket Lifting Frequency | 30~31 times/min |
| Basket Lifting Height | 55±1mm |
| Minimum Spacing | 25±1mm |
| Mesh Size | Standard 2mm(0.425mm, 1mm is optional) |
| Temp. Range | RT~45℃ |
| Temp. Precision | ±0.5℃ |
| Timing Range | 1~900min |
| Time Precision | ±0.5min |
| Working Time | >24h |
| Power Consumption | 550W |
| Power Supply | AC220V, 50/60Hz(Standard);
AC110V, 60Hz(Optional, external transformer) |
| External Size(W*D*H)mm | 400*320*440 |
| Package Size(W*D*H)mm | 470*370*500 |
| Net Weight(kg) | 16 |
| Gross Weight(kg) | 19 |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
