This product can form film under constant temperature heating and negative pressure conditions. Owning to its efficient evaporation and condensation recovery of menstruum, the product is employed in biological, medical, chemical and food industries, especially for operations heat-sensitivematerial, crystallization, separation and recovery of menstruum.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. LED display.
2. Explosion-proof motor.
3. Explosion frequency inverter.
4. Explosion auto temperature controller.
5. Stepless speed controller.
6. Auto-ifting bath is optional.
7. Stainless steel and aluminium alloy structure.
8. Anti-corrosive PTFE sealing good performance.
Technical Parameters:

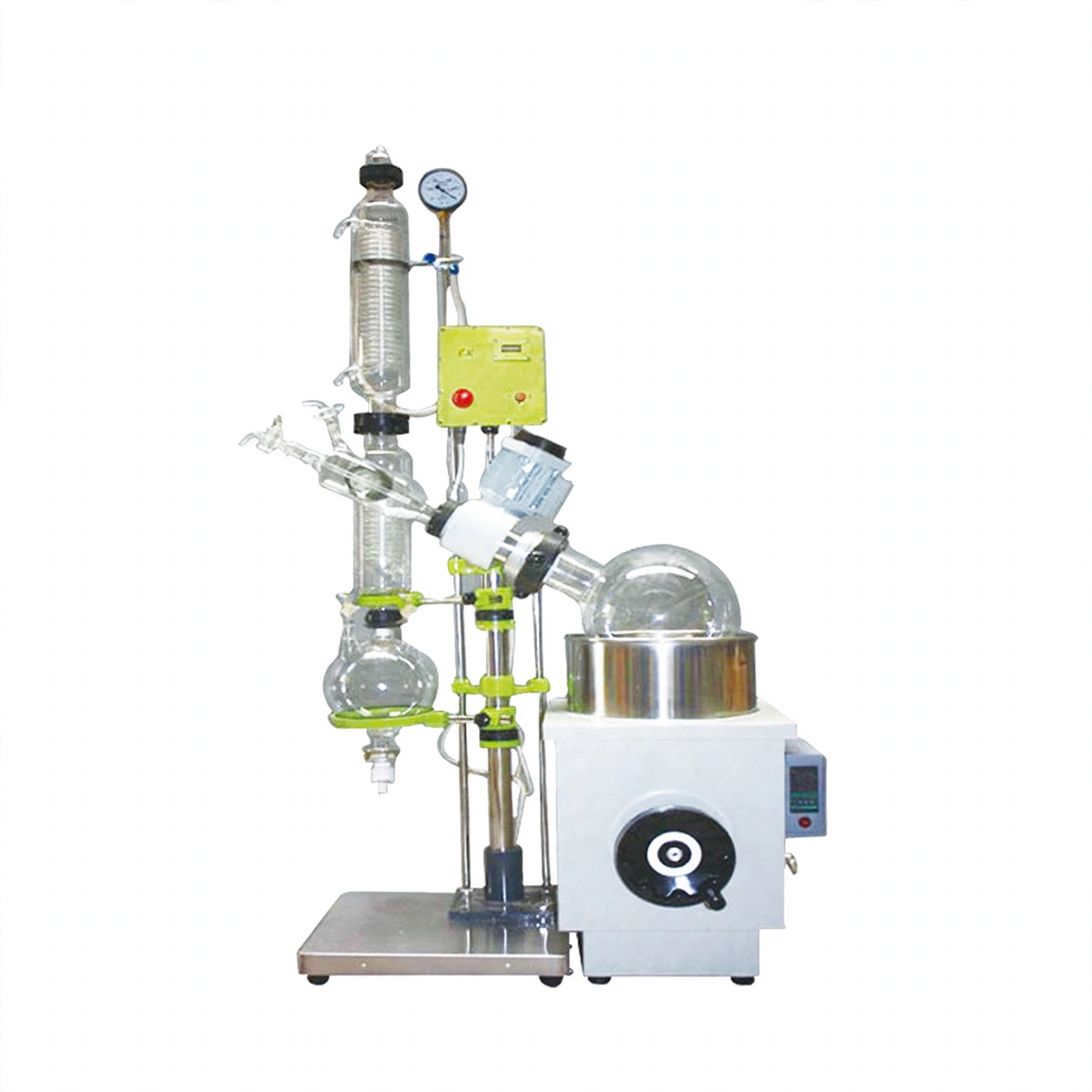

| Model | ExRE-1002 | ExRE-2002 | ExRE-5003 |
| Rotary Bottle | 10L(flange ø95) | 20L(flange ø95) | 50L(flange ø125) |
| Collecting Bottle | 5L(flange φ60~50) | 10L(flange φ60~50) | 20L(flange φ60~50) |
| Condenser | Vertical three back flow, φ120*620mm(main), φ135*475mm(SUB) |
Vertical three back flow, φ130*700mm(main), φ160*530mm(SUB) |
Vertical three back flow. φ160*835mm(main), φ160*530mm(SUB) |
| Charging Valve |
34#(standard size) |
40#(standard size) | |
| Rotating Speed |
0~120rpm |
||
| Vacuum |
-0.095Mpa |
||
| Temp. Range |
RT~180℃ |
||
| Temp. Accuracy |
±1℃ |
||
| Rotating Power |
120W |
180W | |
| Heating Power | 3KW | 5KW | 8KW |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | ||
| External Size(W*D*H) | 930*560*1910mm | 1000*600*2130mm | 1330*730*2340mm |
| Package Size(W*D*H) | 1320*780*755mm | 1350*670*720mm 680*680*790mm |
1420*820*720mm 830*730*910mm |
| Gross Weight | 116kg | 143kg | 195kg |
|
Standard Accessory |
10L rotary bottle*1, 5L collecting bottle*1 |
20L rotary bottle*1, 10L collecting bottle*1 |
50L rotary bottle*1, 20L collecting bottle*1 |
|
Explosion-proof transducer, Explosion-proof motor EX120W |
|||
| Optional Accessory |
Double collection bottle, Auto-lifting, Vacuum pump, Recirculating chiller |
||
