Rotary Evaporator

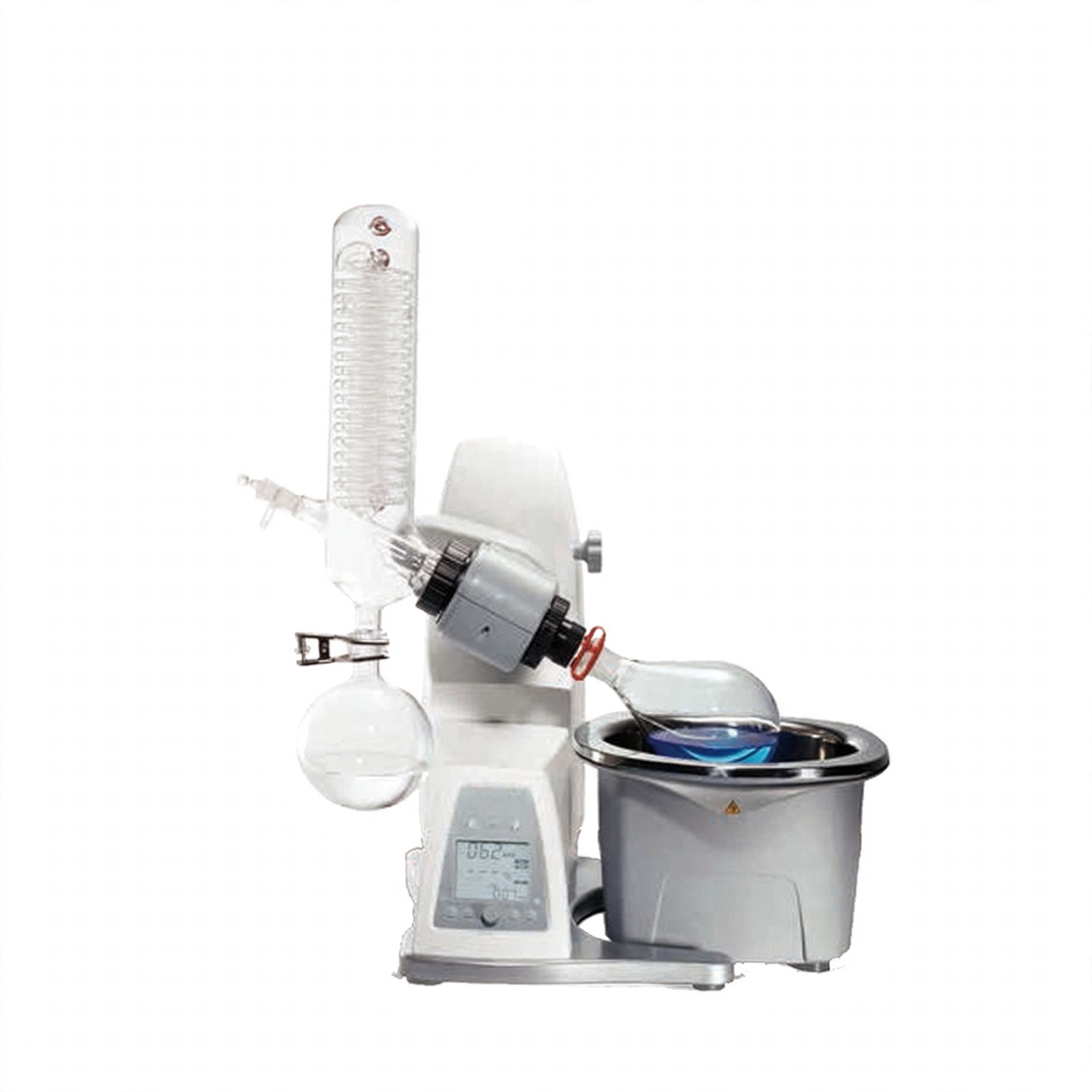

Rotary Evaporator(New Design) RE 100-Pro

Model RE 100-Pro Refrigerated

The Rotary Evaporator is an essential laboratory instrument designed to efficiently remove solvents from liquid samples using gentle heating and reduced pressure.

Max. speed
280 rpm
Temperature
RT~180°C
Power
1400W
Net weight
15kg
Dimensions
465*457*583mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Evaporating flask with an ejector, convenient to remove.

2. 5L water and oil bath dual-purpose heating pot, heating temperature can reach 180℃, easy to switch between water and oil bath heating modes.

3. Patented technology condenser, high recovery rate, condensing effect outstanding.

Technical Parameters:

Model RE 100-Pro
Item No. 6010110111
Evaporating Flask 1L(NS 29/32, 18300120 )
Receiving Flask 1L(KS 35/20, 18300110)
Display LCD
Rotating Speed 20~280rpm
Temp. Range RT~180°C
Temp. Accuracy Water bath: ±1°C

Oil bath: ±3°C
Lift Motor
Stroke Height 150mm
Timing Range 1~999min
Motor DC brushless motor
Heating Power 1300W
Stroke Displacement Automatic 150mm
Protection Class IP20
Rotation Reversible direction
Interface USB
Power 1400W
Power Supply AC110/220V±10%, 50/60Hz(Customizable)
External Size(W*D*H) 465*457*583mm
Package Size(W*D*H) 640*1100*650mm
Net Weight 15kg
Gross Weight 36kg
Standard Accessory Condenser(1700cm2)*1, 1L Evaporating flask* 1, 1L Receiving flask* 1, 5L pot*1
Optional Accessory Vacuum pump, Recirculating chiller
The details

Specifications

Model
RE 100-Pro
Item No.
6010110111
Evaporating Flask
1L(NS 29/32, 18300120 )
Receiving Flask
1L(KS 35/20, 18300110)
Display
LCD
Rotating Speed
20~280rpm
Temp. Range
RT~180°C
Temp. Accuracy
Water bath: ±1°COil bath: ±3°C
Lift
Motor
Stroke Height
150mm
Timing Range
1~999min
Motor
DC brushless motor
Heating Power
1300W
Stroke Displacement
Automatic 150mm
Protection Class
IP20
Rotation
Reversible direction
Interface
USB
Power
1400W
Power Supply
AC110/220V±10%, 50/60Hz(Customizable)
External Size(W*D*H)
465*457*583mm
Package Size(W*D*H)
640*1100*650mm
Net Weight
15kg
Gross Weight
36kg
Standard Accessory
Condenser(1700cm2)*1, 1L Evaporating flask* 1, 1L Receiving flask* 1, 5L pot*1
Optional Accessory
Vacuum pump, Recirculating chiller
