Rotary Evaporator

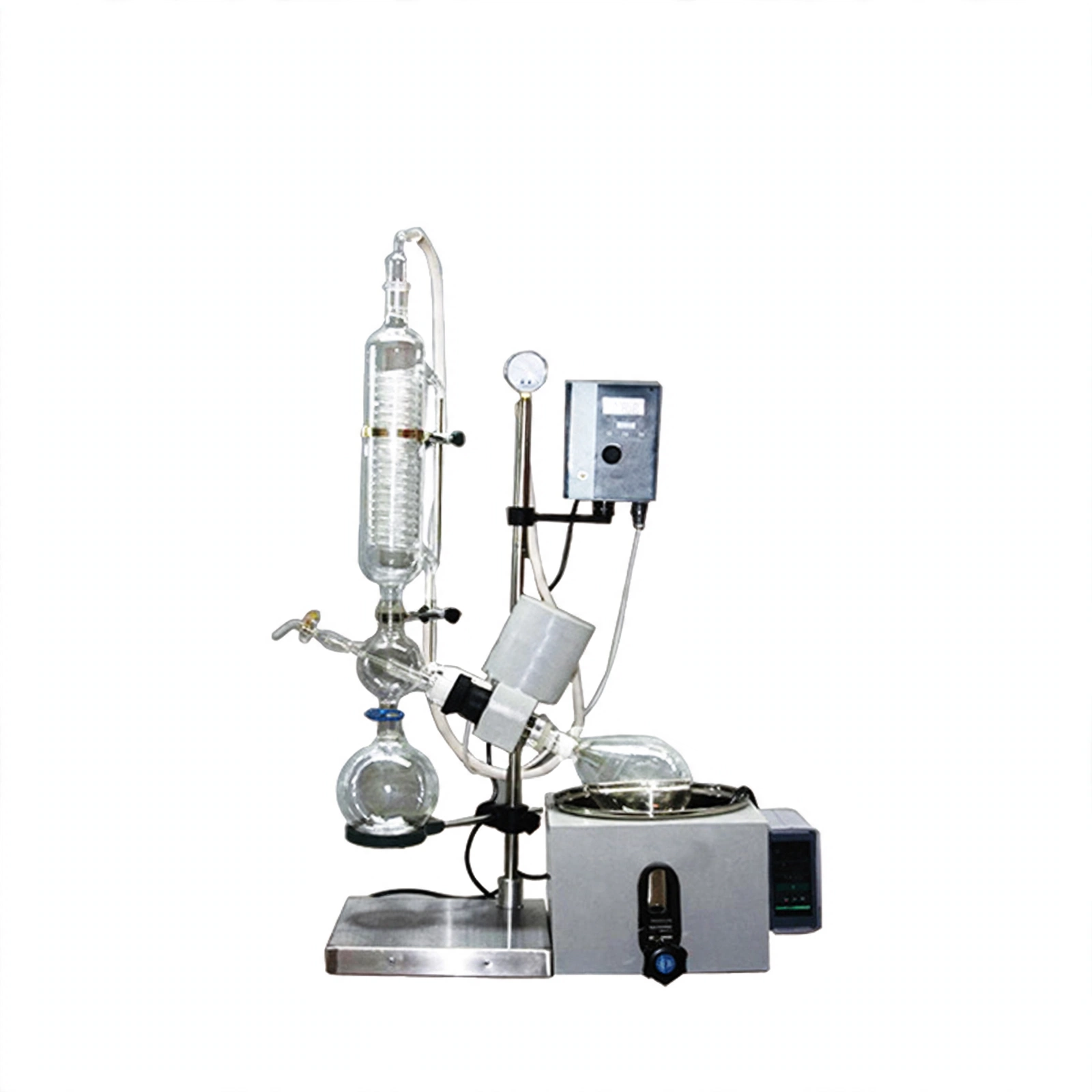

Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003

Model RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 Refrigerated

The Rotary Evaporator is an essential laboratory apparatus designed for efficient and gentle solvent removal through evaporation.

Temperature
RT~180℃
Dimensions
700*330*785 / 740*330…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Electronic stepless speed controll.

2. LED display.

3. Optional explosion-proof function.

Technical Parameters:

Model RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003
Rotary Bottle 1L 24# Standard mouth 3L flange φ50 5L flange φ50 10L flange φ95 20L flange φ95 50L flange φ125
Collecting Bottle 1L 35#(Standard mouth) 2L 35#(Ball mill mouth) 3L 35#(Ball mill mouth) 5L(Flange φ60~50) 10L(Flange φ60) 20L(Flange φ60~50)
Condenser Vertical φ85*430mm,

35#(Ball mill mouth)

 Vertical

φ100*530mm

 Vertical

φ100*530mm

 Vertical three backflow

φ120*620mm(main), φ135*475mm(SUB)

 Vertical three backflow φ130*700mm(main), φ160*530mm(SUB) Vertical three Backflow

φ160*835mm(main),

φ160*530mm(SUB)
Charging Valve

19#(Standard size）

34#(Standard size）

 40#(Standard size）
Rotary Speed

0~120rpm
Vacuum

0.098Mpa

0.095Mpa
Temp. Range

RT~180℃
Temp. Accuracy

±1℃
Stroke Height

200mm

180mm
Rotary Power 40W

40W

120W

 180W
Heating Power 1KW

2KW

 3KW 5KW 8KW
Shelf Material

Stainless steel

Coating anticorrosive
Chamber Material SS 245*140mm SS 265*160mm SS 280*170mm SS 350*220mm SS 450*260mm SS 550*320mm
Plate size 280*330mm

350*330mm

 534*504mm 474*474mm 550*320mm
Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz

 AC220V, 50/60Hz Standard: AC380V, 50Hz; Optional: AC220V, 50Hz
External Size(mm) 700*330*785 740*330*970 760*330*1030 930*560*1910 1000*600*2130 1330*730*2340
Package Size(mm) 710*540*350

990*640*470

 1320*780*755 1350*670*720

680*680*790

 1420*820*720

830*730*910
Gross Weight 21kg 40kg 42kg 107kg 136kg 186kg
Standard

Accessory

 1L rotary bottle*1,

1L collecting bottle*1

 3L rotary

bottle*1,

2L collecting

bottle*1

 5L rotary bottle*1,

3L collecting

bottle*1

 10L rotary bottle*1,

5L collecting bottle*1

 20L rotary bottle*1,

10L collecting bottle*1

 50L rotary bottle*1,

20L collecting bottle*1
Optional Accessory

Vacuum pump, Recirculating chiller
The details

Specifications

Model
RE-201D / RE-301 / RE-501 / RE-1002 / RE-2002 / RE-5003
Rotary Bottle
1L 24# Standard mouth / 3L flange φ50 / 5L flange φ50 / 10L flange φ95 / 20L flange φ95 / 50L flange φ125
Collecting Bottle
1L 35#(Standard mouth) / 2L 35#(Ball mill mouth) / 3L 35#(Ball mill mouth) / 5L(Flange φ60~50) / 10L(Flange φ60) / 20L(Flange φ60~50)
Condenser
Vertical φ85*430mm,35#(Ball mill mouth) / Verticalφ100*530mm / Verticalφ100*530mm / Vertical three backflowφ120*620mm(main), φ135*475mm(SUB) / Vertical three backflow φ130*700mm(main), φ160*530mm(SUB) / Vertical three Backflowφ160*835mm(main),φ160*530mm(SUB)
Charging Valve
19#(Standard size） / 34#(Standard size） / 40#(Standard size） / 40#(Standard size） / 40#(Standard size） / 40#(Standard size）
Rotary Speed
0~120rpm
Vacuum
0.098Mpa / 0.095Mpa / 0.095Mpa / 0.095Mpa / 0.095Mpa / 0.095Mpa
Temp. Range
RT~180℃
Temp. Accuracy
±1℃
Stroke Height
200mm / 180mm / 180mm / 180mm / 180mm / 180mm
Rotary Power
40W / 40W / 120W / 180W / 180W / 180W
Heating Power
1KW / 2KW / 3KW / 5KW / 8KW / 8KW
Shelf Material
Stainless steel / Coating anticorrosive / Coating anticorrosive / Coating anticorrosive / Coating anticorrosive / Coating anticorrosive
Chamber Material
SS 245*140mm / SS 265*160mm / SS 280*170mm / SS 350*220mm / SS 450*260mm / SS 550*320mm
Plate size
280*330mm / 350*330mm / 534*504mm / 474*474mm / 550*320mm / 550*320mm
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz / AC220V, 50/60Hz / Standard: AC380V, 50Hz; Optional: AC220V, 50Hz / Standard: AC380V, 50Hz; Optional: AC220V, 50Hz / Standard: AC380V, 50Hz; Optional: AC220V, 50Hz / Standard: AC380V, 50Hz; Optional: AC220V, 50Hz
External Size(mm)
700*330*785 / 740*330*970 / 760*330*1030 / 930*560*1910 / 1000*600*2130 / 1330*730*2340
Package Size(mm)
710*540*350 / 990*640*470 / 1320*780*755 / 1350*670*720680*680*790 / 1420*820*720830*730*910 / 1420*820*720830*730*910
Gross Weight
21kg / 40kg / 42kg / 107kg / 136kg / 186kg
StandardAccessory
1L rotary bottle*1,1L collecting bottle*1 / 3L rotarybottle*1,2L collectingbottle*1 / 5L rotary bottle*1,3L collectingbottle*1 / 10L rotary bottle*1,5L collecting bottle*1 / 20L rotary bottle*1,10L collecting bottle*1 / 50L rotary bottle*1,20L collecting bottle*1
Optional Accessory
Vacuum pump, Recirculating chiller
