Gelatin Gel Strength Test System

Gel Strength Test System

Model GGST-2 GGST-3 Refrigerated

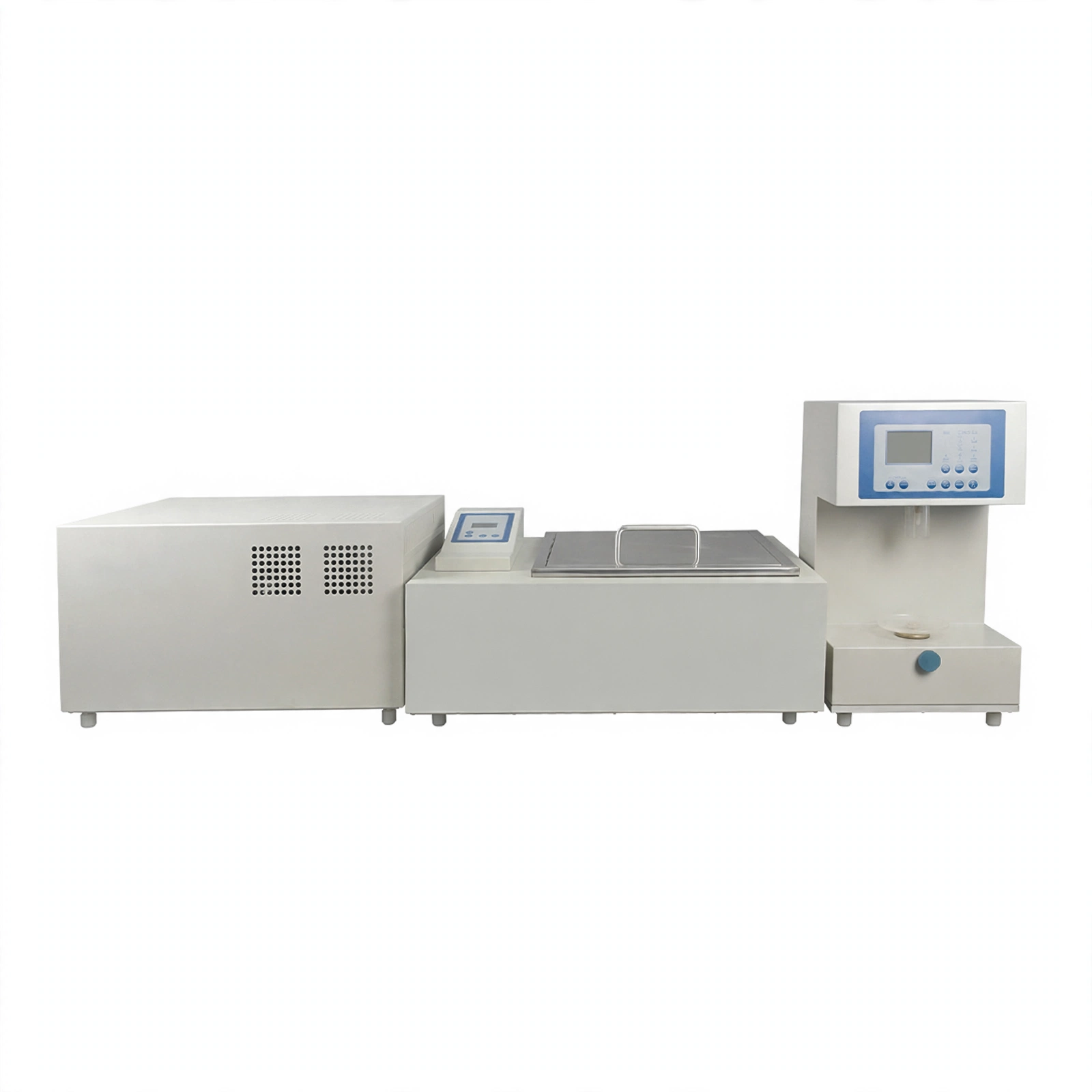

Gel strength test system is mainly used to measure the gel strength of gelatin under the stipulated environment. It consists of: 1. Gel Strength Tester; 2. Constant Temperature Bath; 3. Refrigerator.

Power
60W
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High-definition LCD display.

2. Powerful data processing ability: submit mean value, final value or peak value automatically.

3. Four kinds of sampling measurement modes: single-step, maintaining, circulating and automatic.

4. Automatic measurement mode can help you obtain the value of gel strength faster, more accurately and more realistically.

5. 5 kinds of sampling speeds: 0.1mm/s, 0.2mm/s, 0.5mm/s, 1mm/s and 2mm/s.

6. Sampling depth can be preset arbitrarily(1~60mm).

7. Professional high-precision pressure sensor.

8. High-precision mechanical drive matches with 4-class shockproof design

9. Automatic correction of non-linear error, automatic fault diagnosis alarm, automatic out range protection and automatic error correction prompt.
10. Embedded micro printer, standard serial printing,convenient storage of experimental data.(Only for GGST-3)

Technical Parameters:

Model GGST-2 GGST-3
Test Range

5~1000 Bloom g
Test Accuracy Range

±0.3%
Resolution

1 Bloom g
Travel

1~60mm
Travel Accuracy

≤±0.1mm
Measured Diameter of Cylinder

12.700±0.010mm
Consumption

60W
Power Supply

AC110/220V±10%, 50/60Hz
Standard Accessory

Constant Temperature Bath, Refrigerator
Package Size(W*D*H)

360*360*530mm(Gel Strength Tester)

680*540*355mm(Constant Temperature Bath)

580*480*390mm(Refrigerator)
Gross Weight

12kg(Gel Strength Tester)

25kg(Constant Temperature Bath)

21kg(Refrigerator)
The details

Specifications

Model
GGST-2 / GGST-3
Test Range
5~1000 Bloom g
Test Accuracy Range
±0.3%
Resolution
1 Bloom g
Travel
1~60mm
Travel Accuracy
≤±0.1mm
Measured Diameter of Cylinder
12.700±0.010mm
Consumption
60W
Power Supply
AC110/220V±10%, 50/60Hz
Standard Accessory
Constant Temperature Bath, Refrigerator
Package Size(W*D*H)
360*360*530mm(Gel Strength Tester)680*540*355mm(Constant Temperature Bath)580*480*390mm(Refrigerator)
Gross Weight
12kg(Gel Strength Tester)25kg(Constant Temperature Bath)21kg(Refrigerator)
