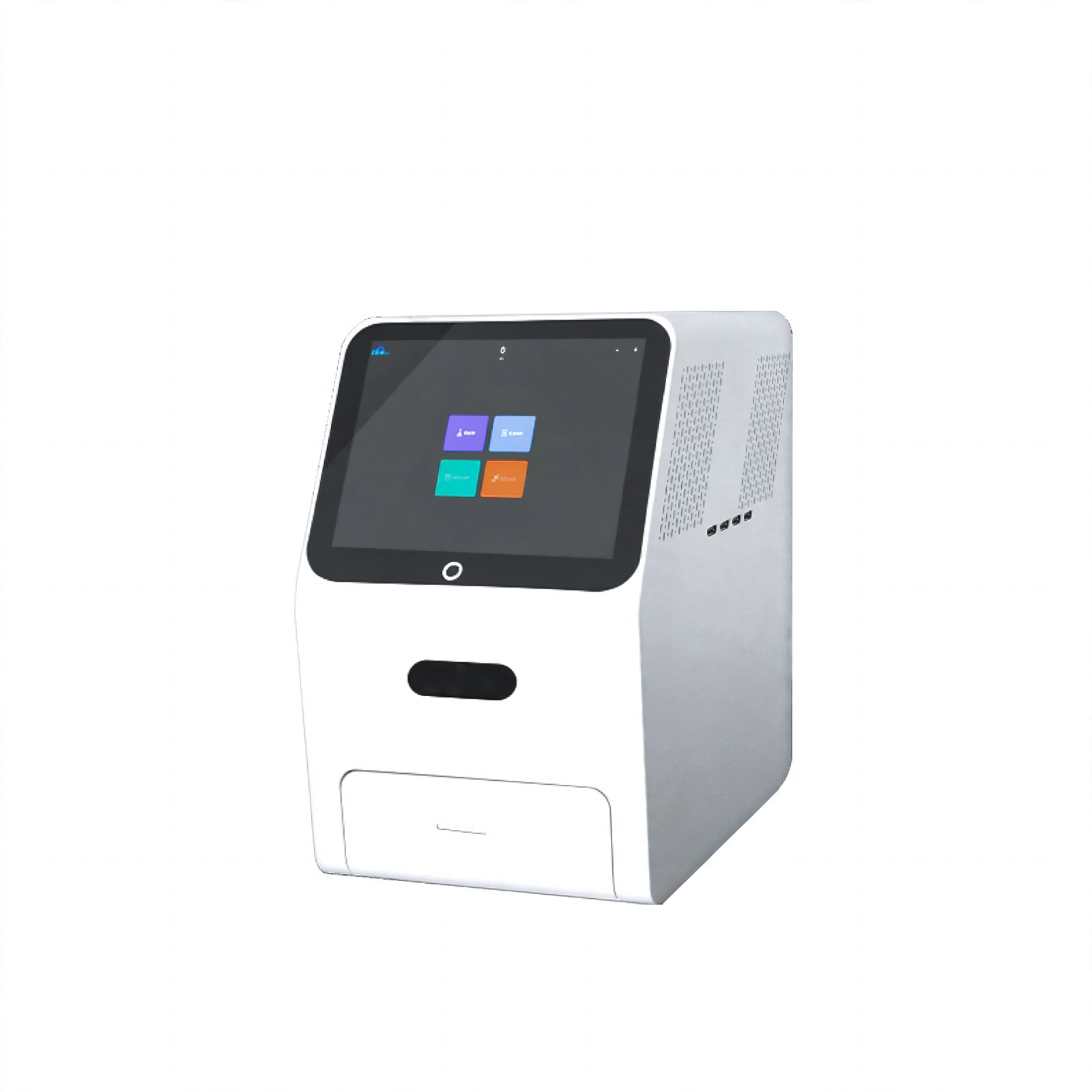

Integrated Automatic Gel Imaging System BK-AGX3

Model BK-AGX3

Automatic gel imaging system ‌ is a device for analyzing and recording the results of gel electrophoresis. It is widely used in molecular biology, biochemistry and genetics. Its main functions include high-resolution imaging, color reproduction and intelligent analysis, which can clearly show the subtle differences in gel experiments and help researchers accurately analyze experimental results.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Applications:

Nucleic acid detection with various fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red Gel, Green Texas Red, Fluorescein labeled DNA/RNA, etc.

Features:

1. Camera lens, adopt dark field camera module. Super aperture 20 million solutions analyticity.

2. Touch system 12.5 inches touch HD display, one touch imaging, intelligent processing system.

3. Special filter, multilayer coated filter is adopted passing of absolute stray light.
4. Standard of USB port.

Technical Parameters:

Model BK-AGX3
Camera Resolution 6.0MP
Photosensitive Efficiency ≥79%
Exposure Time 1ms~5000ms
Pixel Density 16 Bits(0~65535)
OD ≥4.8OD
Lens Large aperture autofocus lens, 20 million auto focus lens
UV Transmission 302nm, optional other transmitted blue light
White Light Reflection LED reflection(cold light)
White Light Transmission White light emitting panel
Filter Standard 590nm, other optional
Shooting Area 21*21cm
Timer Shut Down 1~60min
Touch System 12.5-inch touch system
Power Supply 110~240V, 50/60Hz
Packing Size 450*462*666mm
Gross Weight 22.3kg
The details

Specifications

Model
BK-AGX3
Camera Resolution
6.0MP
Photosensitive Efficiency
≥79%
Exposure Time
1ms~5000ms
Pixel Density
16 Bits(0~65535)
OD
≥4.8OD
Lens
Large aperture autofocus lens, 20 million auto focus lens
UV Transmission
302nm, optional other transmitted blue light
White Light Reflection
LED reflection(cold light)
White Light Transmission
White light emitting panel
Filter
Standard 590nm, other optional
Shooting Area
21*21cm
Timer Shut Down
1~60min
Touch System
12.5-inch touch system
Power Supply
110~240V, 50/60Hz
Packing Size
450*462*666mm
Gross Weight
22.3kg
