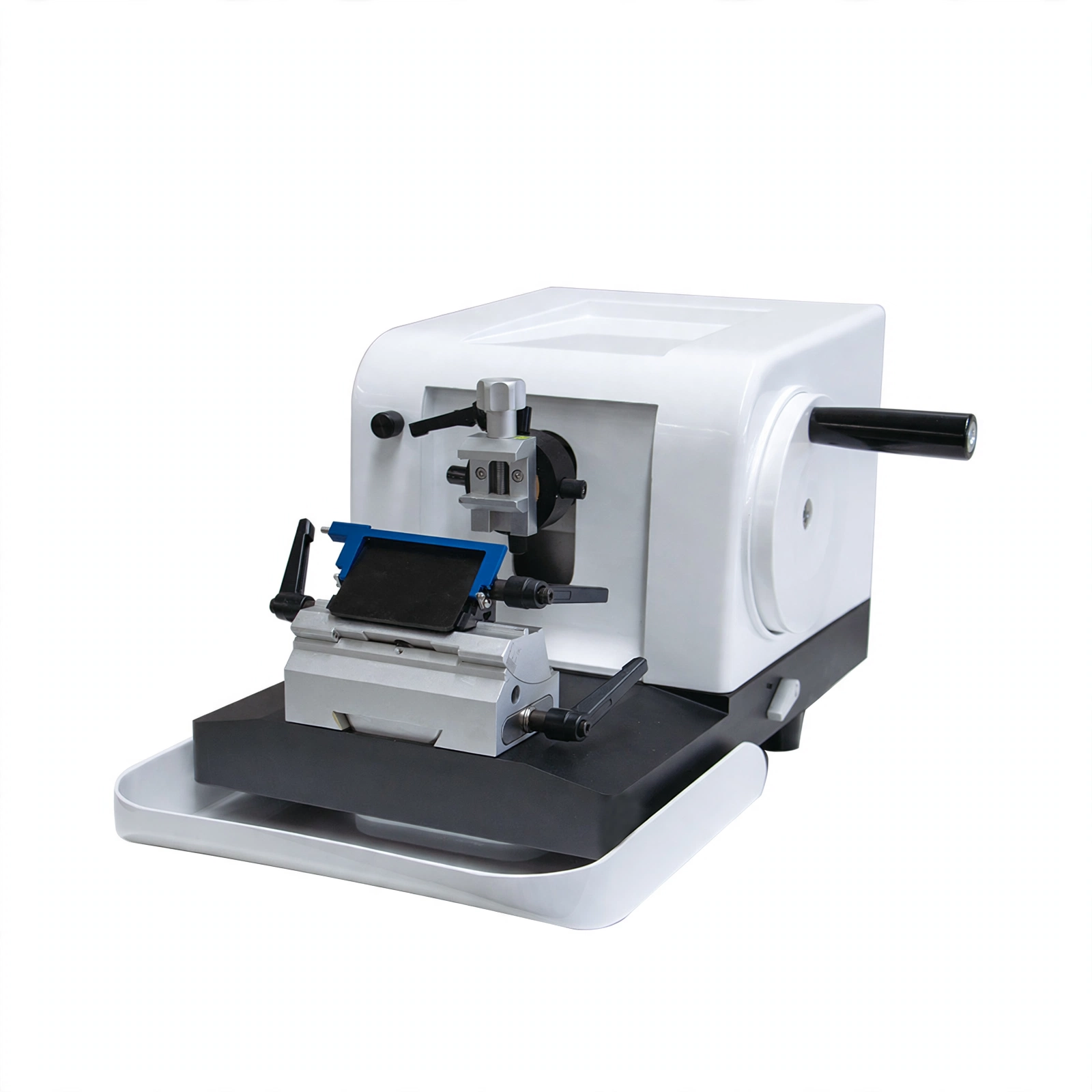

The Manual Rotary Microtome is a precise slicing instrument used in histology laboratories for preparing thin tissue sections from paraffin-embedded specimens.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Blades and wax blocks can be placed in the groove on the top of the cover, which is easy to use.
2. Cross-roller guide rails to ensure long-lasting operation of the equipment.
3. High-precision micro-feeding system to achieve stable and high-precision slicing.
4. The wax block holder can be adjusted in any direction in three-dimensional space, which is easy and accurate to use.
5. The right wheel turns and stops immediately, and can be locked at any position to ensure the safety and convenience of slicing.
6. The counterweight design of the right runner makes slicing light and fast.
7. Precise tool holder lateral movement function, the position of the same sample changes very little after changing the blade edge, the base of the tool holder has a scale, which is convenient for the positioning of the tool holder.
8. The knife guard covers the full length of the blade to avoid the potential risk of injury during operation. When changing the blade, the ejector easily pushes the blade out and removes it safely.
9. Large-capacity removable waste chute, easy to clean.
Technical Parameters：
| Model | BK-2258 |
| Sectioning Thickness Range | 0~60μm |
| Trimming Thickness Range | 0~60μm |
| Mini. Sectioning Thickness | 0.5μm |
| Precision | ±5% |
| Max Specimen Size | 50*70mm |
| Specimen Stroke | Horizontal: 28mm, Vertical: 52mm |
| Tool Holder Stroke | The maximum forward and backward movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
| Sample Adjustment Direction | Horizontal 8°
Vertical 8° Rotation 360° |
| External Size(W*D*H) | 570*470*300mm |
| Net Weight | 29kg |
| Packing Size(W*D*H) | 600*590*530mm |
| Gross Weight | 42kg |
