Rotary Evaporator

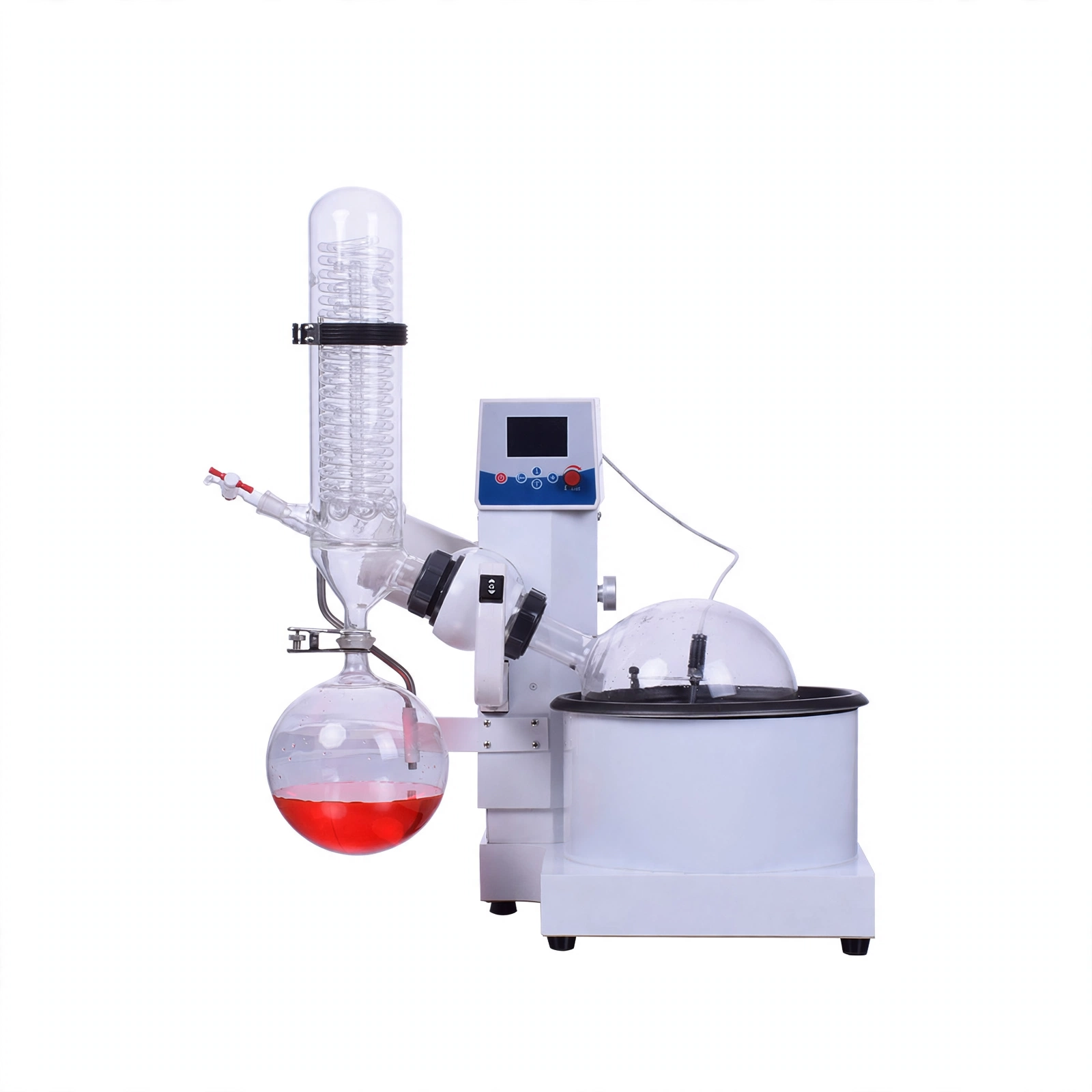

Rotary Evaporator RE-5000

Model RE-5000

Application: Mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries.

Net weight
30KG
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features

1. All parts in contact with materials are made of high borosilicate glass and polytetrafluoroethylene.

2. The main bracket is made of rust-proof aluminum alloy.

3. Integrated condenser with upright double-layer serpentine coil to ensure high recovery rate.

4. Rotation and heating power switch control.

5. Large LCD screen can display temperature and rotation speed at the same time.

6. Brushless rotating motor for smooth operation.

7. Electronic stepless speed regulation, fine adjustment by turning the knob, simple and easy to operate.

8. Rotating and heating double fuses have high safety protection performance.

Technical Parameters

Model RE-5000
Rotary Bottle Volume 5LΦ230mm/Φ50 Flange mouth
Collecting Bottle Volume 3LΦ195mm/35#ball mill mouth
Rotary Speed 0-200rpm/min
Temp. Control Range RT-99℃
Temp. Control Accuracy ±1℃
Stroke Height 90mm
Condenser Size 19#standard size
Condenser Square Meter 0.26㎡
Charging Valve 19#standard size, Feeding nozzle (pagoda joint) outer diameter 10mm
Vacuum Suction Nozzle Pagoda connector outer diameter 10mm
Condensation Coil Circulation Nozzle Pagoda connector outer diameter 12mm
Bath Size Φ275*160H(mm),9.5L
Product Size 690*440*（825-915）mm
Overall Power 1560W
Rotary Motor Power 40W
Lifting Motor Power 20W
Heating Power 1500W
Vacuum 0.098Mpa
Power Supply Standard: 220V 50/60Hz, optional: 110V 50/60Hz
Net Weight 30KG
Packing Size 615*485*650mm
Gross Weight 48KG
Appliable Vacuum SHZ-DIII
Appliable Recirculating Chiller DLSB-5/20
The details

Specifications

Model
RE-5000
Rotary Bottle Volume
5LΦ230mm/Φ50 Flange mouth
Collecting Bottle Volume
3LΦ195mm/35#ball mill mouth
Rotary Speed
0-200rpm/min
Temp. Control Range
RT-99℃
Temp. Control Accuracy
±1℃
Stroke Height
90mm
Condenser Size
19#standard size
Condenser Square Meter
0.26㎡
Charging Valve
19#standard size, Feeding nozzle (pagoda joint) outer diameter 10mm
Vacuum Suction Nozzle
Pagoda connector outer diameter 10mm
Condensation Coil Circulation Nozzle
Pagoda connector outer diameter 12mm
Bath Size
Φ275*160H(mm),9.5L
Product Size
690*440*（825-915）mm
Overall Power
1560W
Rotary Motor Power
40W
Lifting Motor Power
20W
Heating Power
1500W
Vacuum
0.098Mpa
Power Supply
Standard: 220V 50/60Hz, optional: 110V 50/60Hz
Net Weight
30KG
Packing Size
615*485*650mm
Gross Weight
48KG
Appliable Vacuum
SHZ-DIII
Appliable Recirculating Chiller
DLSB-5/20
