Vertical Autoclave

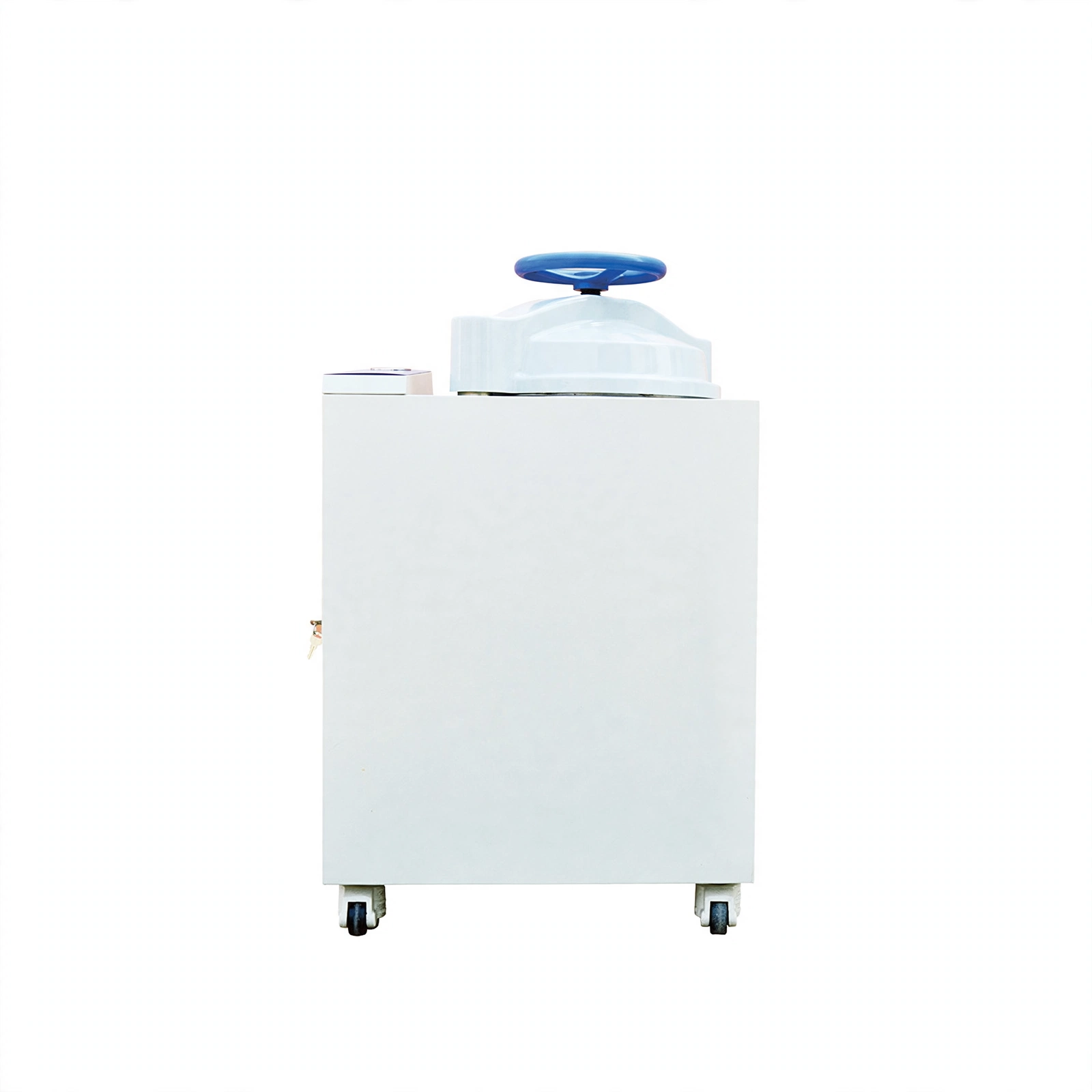

Vertical Autoclave BKQ-B50I BKQ-B75I BKQ-B100I BKQ-B120I

Model BKQ-B50I, BKQ-B75I, BKQ-B100I, BKQ-B120I

Application Range: It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.

Capacity
50L / 75L / 100L / 12…
Power
3.7KW / 4.1KW / 4.1KW…
Noise
≤65dB
Net weight
89kg / 95kg / 105kg /…
Dimensions
640*550*980mm / 640*5…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The hand wheel slides to open the door, which is fast and labor-saving.

2. Casters facilitate the movement of the equipment.

3. It has a fast maintenance window, and the electrical part does not need to remove the cover for maintenance.

4. Steam generation method: heating inside the main body, no external steam source is required.

5. Using gravity displacement and positive pressure pulsating exhaust method to discharge the cold air in the load and sterilization room.

6. A variety of programs

There are exposed program, packaging program, rubber program, dressing program, liquid program, liquid customization and solid customization.

Technical Parameters:

Model BKQ-B50I BKQ-B75I BKQ-B100I BKQ-B120I
Capacity 50L 75L 100L 120L
Designed Pressure

0.28Mpa
Working Pressure

0.23MPa
Designed Temp.

150℃
Working Temp.

105~136℃
Temp. Precision

0.1℃
Chamber Material

S30408
Chamber Size φ386*515mm φ386*695mm φ386*875mm φ386*1055mm
Basket/ Mesh Bottom Basket/ Bucket φ365*360mm, 1pc φ365*265mm, 2pcs φ365*360mm, 2pcs φ365*360mm, 1pc

φ365*265mm, 2pcs
Noise

≤65dB
Altitude

≤2700m
Standard Accessories

Basket
Optional Accessories

Printer, mesh bottom basket, bucket
Consumption

3.7KW

4.1KW
Power Supply

AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional); Wiring method:Air switch
External Size(W*D*H) 640*550*980mm 640*550*1080mm 640*550*1280mm 640*550*1380mm
Net Weight 89kg 95kg 105kg 122kg
Packing Size(W*D*H) 750*745*1100mm 750*745*1240mm 750*745*1450mm 750*745*1540mm
Gross Weight 104kg 117kg 125kg 137kg
The details

Specifications

Model
BKQ-B50I / BKQ-B75I / BKQ-B100I / BKQ-B120I
Capacity
50L / 75L / 100L / 120L
Designed Pressure
0.28Mpa
Working Pressure
0.23MPa
Designed Temp.
150℃
Working Temp.
105~136℃
Temp. Precision
0.1℃
Chamber Material
S30408
Chamber Size
φ386*515mm / φ386*695mm / φ386*875mm / φ386*1055mm
Basket/ Mesh Bottom Basket/ Bucket
φ365*360mm, 1pc / φ365*265mm, 2pcs / φ365*360mm, 2pcs / φ365*360mm, 1pcφ365*265mm, 2pcs
Noise
≤65dB
Altitude
≤2700m
Standard Accessories
Basket
Optional Accessories
Printer, mesh bottom basket, bucket
Consumption
3.7KW / 4.1KW / 4.1KW / 4.1KW
Power Supply
AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional); Wiring method:Air switch
External Size(W*D*H)
640*550*980mm / 640*550*1080mm / 640*550*1280mm / 640*550*1380mm
Net Weight
89kg / 95kg / 105kg / 122kg
Packing Size(W*D*H)
750*745*1100mm / 750*745*1240mm / 750*745*1450mm / 750*745*1540mm
Gross Weight
104kg / 117kg / 125kg / 137kg
