Vertical Autoclave

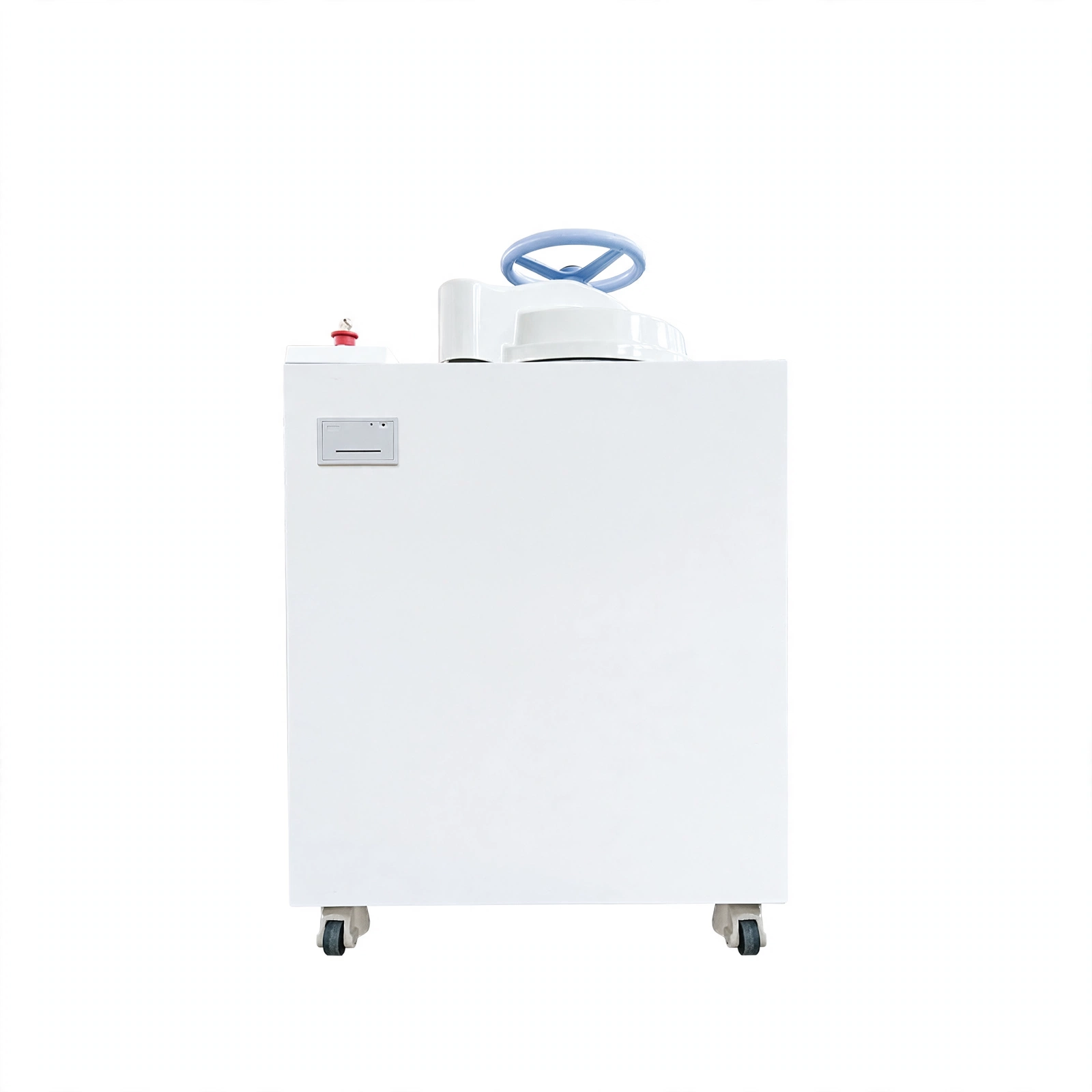

Vertical Pressure Autoclave BKQ-B50L BKQ-B75L

Model BKQ-B50L, BKQ-B75L

Autoclave is the use of pressure saturated steam to carry out rapid and reliable disinfection and sterilization equipment, suitable for medical and health undertakings, scientific research, agriculture and other units. Sterilize medical instruments, dressings, glassware, solution media, etc.

Capacity
50L / 75L
Power
5.5KW
Noise
≤65dB
Net weight
127kg / 132kg
Dimensions
700*610*1070mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Standard built-in printer.

2. Deionized water interface for supplying steam generator.

3. Rapid water cooling system for efficient and safe sterilization of liquids.

4. With a quick maintenance window, the electrical parts can be repaired without removing the cover.

5. Microcomputer control. Fully automatic control water injection, temperature rise, sterilization, exhaust.

6. LCD screen display shows pressure, temperature, time, running status, error codes etc.

7. Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.
8. The air compressor can be optional.

9. It is equipped with liquid program, medium program, solid program.

Technical Parameters:

Model BKQ-B50L BKQ-B75L
Capacity 50L 75L
Designed Pressure

0.28MPa
Working Pressure

0.23MPa
Designed Temp.

150℃
Working Temp.

105°C~136°C
Temp. Precision

0.1℃
Chamber Material

S30408
Chamber Size φ386*490mm φ386*670mm
Basket φ365*265mm, 1pc φ365*360mm, 1pc
Noise

≤65dB
Altitude

≤2700m, please make a note when placing an order between 1000~2700 meters
Standard Accessories

Printer, mesh bottom basket
Optional Accessories

Air compressor
Consumption

5.5KW
Power Supply

AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional);Wiring method：Air switch
External Size(W*D*H)

700*610*1070mm
Net Weight 127kg 132kg
Package Size(W*D*H)

820*740*1380mm
Gross Weight 140kg 147kg

Remark: When used to sterilize sealing liquids, the air compressor is necessary.

The details

Specifications

Model
BKQ-B50L / BKQ-B75L
Capacity
50L / 75L
Designed Pressure
0.28MPa
Working Pressure
0.23MPa
Designed Temp.
150℃
Working Temp.
105°C~136°C
Temp. Precision
0.1℃
Chamber Material
S30408
Chamber Size
φ386*490mm / φ386*670mm
Basket
φ365*265mm, 1pc / φ365*360mm, 1pc
Noise
≤65dB
Altitude
≤2700m, please make a note when placing an order between 1000~2700 meters
Standard Accessories
Printer, mesh bottom basket
Optional Accessories
Air compressor
Consumption
5.5KW
Power Supply
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional);Wiring method：Air switch
External Size(W*D*H)
700*610*1070mm
Net Weight
127kg / 132kg
Package Size(W*D*H)
820*740*1380mm
Gross Weight
140kg / 147kg
