Vertical Autoclave

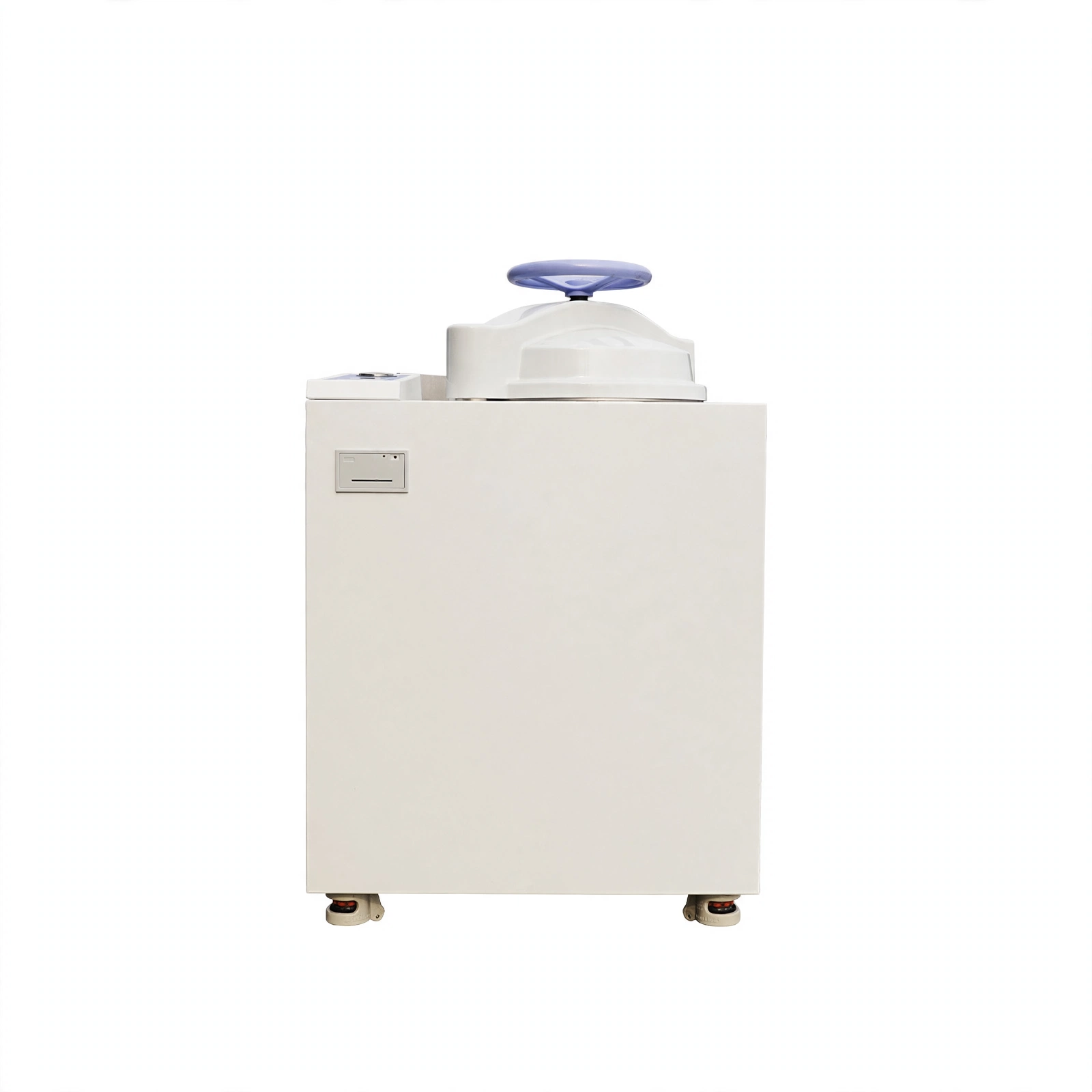

Vertical Pulse Vacuum Autoclave 50L 75L 100L

Model BKQ-B50V BKQ-B75V BKQ-B100V

It uses steam as the medium, and repeatedly draws vacuum and flls the sterilization chamber with steam to make the sterilization chamber reach a certain vacuum degree, and then flls with saturated steam to reach the set pressure and temperature to achieve the purpose of sterilizing the sterilized items. It is mainly used in laboratories, food processing enterprises and other non-medical units for the sterilization of fabrics, rubber, instruments, laboratory utensils, culture media and non-enclosed liquids.

Capacity
50L / 75L / 100L
Power
5.5KW / 6.2KW / 6.2KW
Noise
≤65dB
Net weight
127kg / 130kg / 150kg
Dimensions
700*610*1070mm / 700*…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Steam water internal circulation.

2. Pulse vacuum exhaust to ensure the effect of steam sterilization.

3. Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.

4. LCD screen display shows pressure, temperature, time and error codes.

5. Selectable programs for packed, unpacked, dressings, rubber, liquid, liquid custom, solid custom, sterilization of medium, dissolution of medium, B&D testing and vacuum testing etc.

6. Complete process of preheating, replacement, pulse exhaust, heating, sterilizing and drying run automatically.

7. 0.22μm Sterilization high efficiency air filter, ensuring that the vacuum-depleted air is sterile air to prevent re-pollution of sterile materials.

8. Standard built-in printer for recording the information during the entire sterilization process.

Technical Parameters:

Model BKQ-B50V BKQ-B75V BKQ-B100V
Capacity 50L 75L 100L
Designed Pressure

-0.1/0.28MPa
Working pressure

0.23MPa
Designed Temp.

150℃
Working Temp.

105~134℃
Temp. Precision

0.1℃
Chamber Material

S30408
Chamber Size φ386*490mm φ386*670mm φ386*900mm
Basket φ360*260mm, 1pc φ360*360mm, 1pc φ360*330mm, 2pc
Vacuum System

Eject vacuum system
Noise

≤65dB(A)
Altitude

≤2000m, could be customized at 2000~3000m
Standard Accessories

Printer, mesh bottom basket
Consumption

5.5KW

 6.2KW
Power Supply

AC220V, 50Hz or 60Hz（Standard）

AC110V, 60Hz（Optional）

Wiring method：Air switch
External Size(W*D*H)

700*610*1070mm

 700*610*1300mm
Net Weight 127kg 130kg 150kg
Package Size(W*D*H)

820*740*1380mm

 820*740*1530mm
Gross Weight 142kg 145kg 170kg
The details

Specifications

Model
BKQ-B50V / BKQ-B75V / BKQ-B100V
Capacity
50L / 75L / 100L
Designed Pressure
-0.1/0.28MPa
Working pressure
0.23MPa
Designed Temp.
150℃
Working Temp.
105~134℃
Temp. Precision
0.1℃
Chamber Material
S30408
Chamber Size
φ386*490mm / φ386*670mm / φ386*900mm
Basket
φ360*260mm, 1pc / φ360*360mm, 1pc / φ360*330mm, 2pc
Vacuum System
Eject vacuum system
Noise
≤65dB(A)
Altitude
≤2000m, could be customized at 2000~3000m
Standard Accessories
Printer, mesh bottom basket
Consumption
5.5KW / 6.2KW / 6.2KW
Power Supply
AC220V, 50Hz or 60Hz（Standard）AC110V, 60Hz（Optional）Wiring method：Air switch
External Size(W*D*H)
700*610*1070mm / 700*610*1300mm / 700*610*1300mm
Net Weight
127kg / 130kg / 150kg
Package Size(W*D*H)
820*740*1380mm / 820*740*1530mm / 820*740*1530mm
Gross Weight
142kg / 145kg / 170kg
