Laminar Flow Cabinet

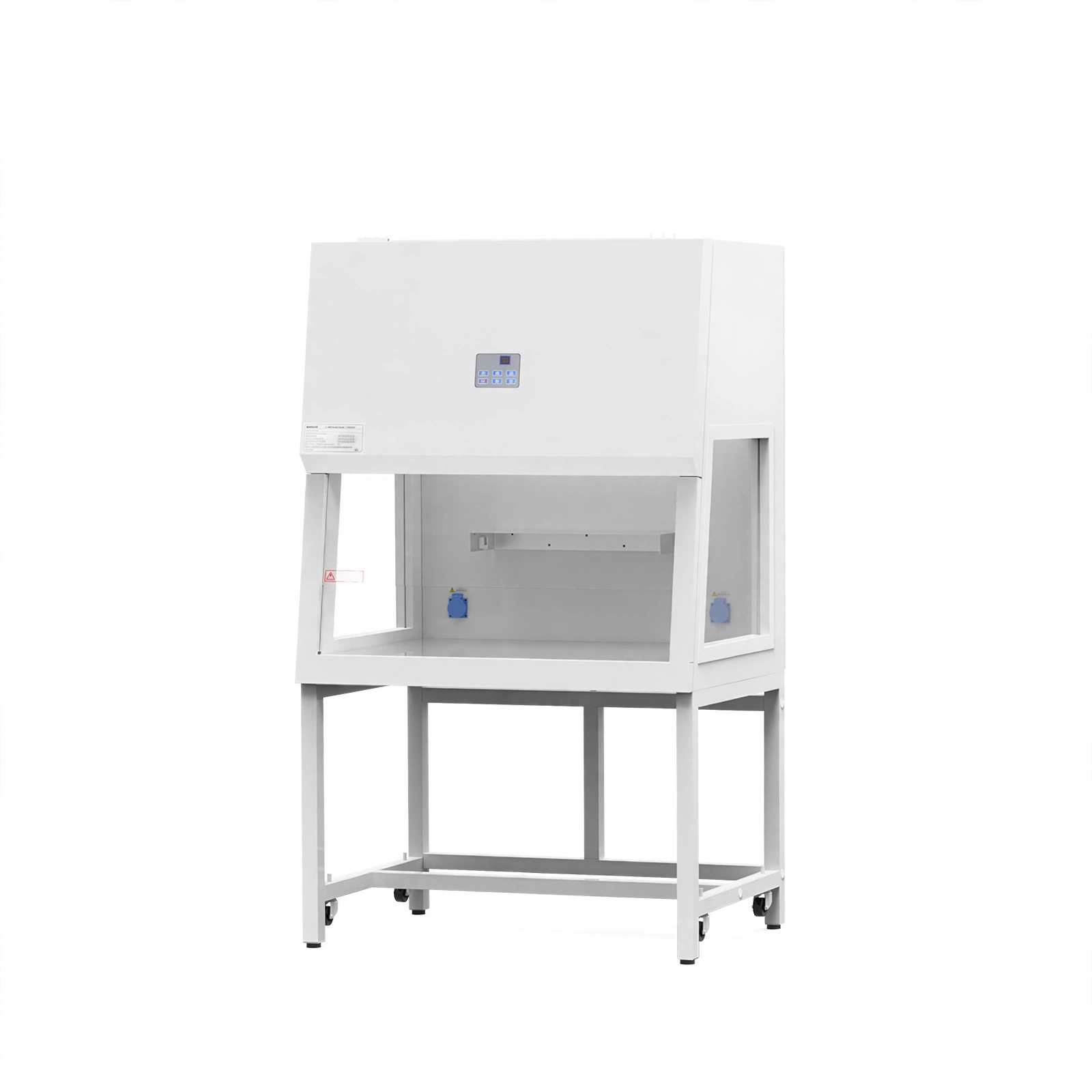

PCR Cabinet PCR800 PCR1000 PCR1200 PCR1300 PCR1500

Model PCR800, PCR1000, PCR1200, PCR1300, PCR1500 Microplate & PCR

The PCR Cabinet is a specialized workspace designed to provide a contamination-free environment for performing Polymerase Chain Reaction(PCR) experiments. It helps to prevent cross-contamination by ensuring that airborne particles and aerosols are filtered and controlled. The cabinet is essential in molecular biology, genetics, and diagnostic labs where PCR amplification is performed frequently. It offers a clean and sterile environment, protecting the integrity of sensitive PCR samples and ensuring the accuracy of experimental results.

Power
400W / 300W / 600W /…
Noise
≤65dB
Dimensions
800*700*1770mm / 1000…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. LCD display(LED display for PCR1000).

2. UV sterilization system.

3. HEPA filter efficiency 99.995% at 0.3μm.

4. With memory function in case of power-failure.

5. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.

6. UV timer(0~90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.

Technical Parameters:

Model PCR-800 PCR-1000 PCR-1200 PCR-1300 PCR-1500
External Size(W*D*H) 800*700*1770mm 1000*705*1770mm 1200*700*1770mm 1300*700*1770mm 1500*700*1770mm
Internal Size(W*D*H) 700*595*550mm 900*595*560mm 1100*595*550mm 1200*595*550mm 1400*595*550mm
Work Surface Height

750mm

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Front&Side Windows

5mm toughened glass, anti-UV
Motorized Manual

Motorized
Max Opening 300mm 320mm

300mm
Pre-filter

Polyester fiber, washable
HEPA Filter

99.995% efficiency at 0.3μm
Airflow Velocity

0.3~0.5m/s, speed adjustable
Noise

≤65dB

UV Lamp

 20W*1 20W*2 30W*1 30W*1 40W*1

Emission of 253.7 nanometers, with UV timer
LED Lamp

8W*2

12W*2
Illumination

≥350lx
Shelf with IV Bar

Stainless steel, 502*150*50mm(W*D*H)
Caster

Universal caster with leveling feet
Consumption 400W 300W

600W
Waterproof Socket

Two, total load≤500W
Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory

UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar
Optional Accessory Electric height adjustable base stand
Gross Weight 168kg 178kg 220kg 231kg 250kg
Package Size(W*D*H) 960*940*1450mm 1150*930*1450mm 1350*930*1450mm 1450*930*1450mm 1650*930*1450mm
The details

Specifications

Model
PCR-800 / PCR-1000 / PCR-1200 / PCR-1300 / PCR-1500
External Size(W*D*H)
800*700*1770mm / 1000*705*1770mm / 1200*700*1770mm / 1300*700*1770mm / 1500*700*1770mm
Internal Size(W*D*H)
700*595*550mm / 900*595*560mm / 1100*595*550mm / 1200*595*550mm / 1400*595*550mm
Work Surface Height
750mm
Material
Main Body: Cold-rolled steel with anti-bacteria powder coating
Material
Work Table: 304 stainless steel
Front&Side Windows
5mm toughened glass, anti-UV
Front&Side Windows
Motorized / Manual / Motorized / Motorized / Motorized
Max Opening
300mm / 320mm / 300mm / 300mm / 300mm
Pre-filter
Polyester fiber, washable
HEPA Filter
99.995% efficiency at 0.3μm
Airflow Velocity
0.3~0.5m/s, speed adjustable
Noise
≤65dB
UV Lamp
20W*1 / 20W*2 / 30W*1 / 30W*1 / 40W*1
UV Lamp
Emission of 253.7 nanometers, with UV timer
LED Lamp
8W*2 / 12W*2 / 12W*2 / 12W*2 / 12W*2
Illumination
≥350lx
Shelf with IV Bar
Stainless steel, 502*150*50mm(W*D*H)
Caster
Universal caster with leveling feet
Consumption
400W / 300W / 600W / 600W / 600W
Waterproof Socket
Two, total load≤500W
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory
UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar
Optional Accessory
Electric height adjustable base stand
Gross Weight
168kg / 178kg / 220kg / 231kg / 250kg
Package Size(W*D*H)
960*940*1450mm / 1150*930*1450mm / 1350*930*1450mm / 1450*930*1450mm / 1650*930*1450mm
