Laminar Flow Cabinet

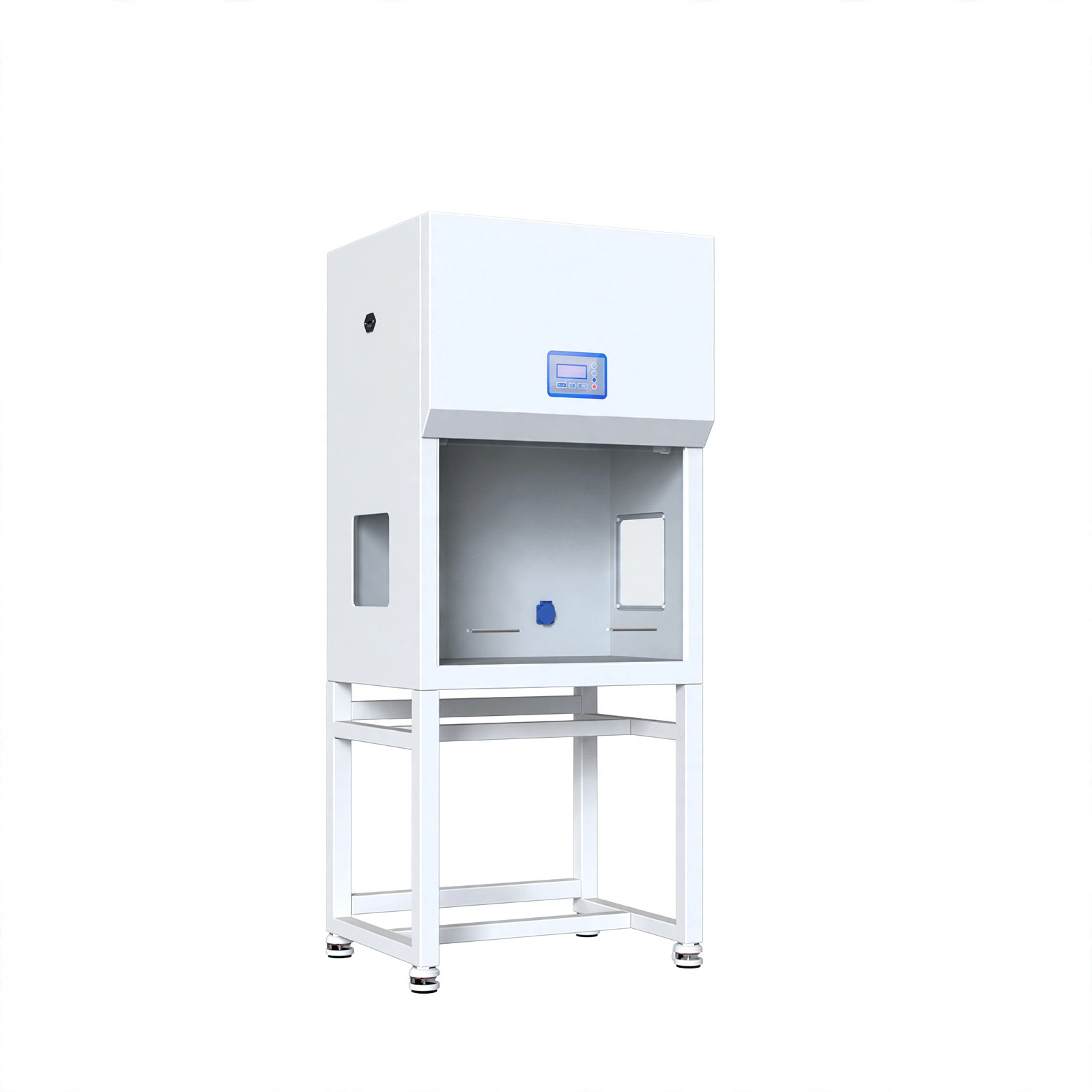

PP Vertical Laminar Flow Cabinet BKCB-800P

Model BKCB-800P BKCB-1000P BKCB-1200P BKCB-1500P

The PP Vertical Laminar Flow Cabinet is a high-quality clean air workstation designed for sensitive operations that require a particle-free, sterile environment. Constructed from durable polypropylene (PP), this cabinet ensures strong chemical resistance and is ideal for use in laboratories handling corrosive substances. With a vertical airflow design, the cabinet provides optimal protection for both samples and processes from contamination.

Power
650W / 650W / 700W /…
Noise
≤65dB
Dimensions
800*710*1800mm / 1000…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Made of PP material, integrally welded.

2. Resistant to strong acid, alkali and strong corrosion.

3. With memory function in case of power-failure.

4. Interlock function: UV lamp and blower, LED lamp.

5.The work surface is seamlessly welded with 12mm thick PP plate, which is convenient for overall cleaning.

Technical Parameters:

Model BKCB-800P BKCB-1000P BKCB-1200P BKCB-1500P
External Size(W*D*H) 800*710*1800mm 1000*710*1800mm 1200*710*1800mm 1500*710*1800mm
Internal Size(W*D*H) 780*540*550mm 980*540*550mm 1180*540*550mm 1480*540*550mm
Work Surface Height

750mm
Material

Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion
Side Window

5mm toughened glass, anti-UV
Front Window

Manual
Pre-filter

Polyester fiber
HEPA Filter

99.995% efficiency at 0.3μm
Airflow Velocity

0.3~0.5m/s
Noise

≤65dB
Max Opening

400mm
UV Lamp

20W*1
LED Lamp

8W*1
Illumination

≥350lx
Caster

Footmaster caster
Waterproof Socket

One, total load≤500W
Consumption 650W 650W 700W 850W
Standard Accessory UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand
Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Package Size(W*D*H) 950*950*1300mm 1150*950*1300mm 1350*950*1300mm 1650*950*1300mm
Gross Weight 90kg 110kg 130kg 150kg
The details

Specifications

Model
BKCB-800P / BKCB-1000P / BKCB-1200P / BKCB-1500P
External Size(W*D*H)
800*710*1800mm / 1000*710*1800mm / 1200*710*1800mm / 1500*710*1800mm
Internal Size(W*D*H)
780*540*550mm / 980*540*550mm / 1180*540*550mm / 1480*540*550mm
Work Surface Height
750mm
Material
Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion
Side Window
5mm toughened glass, anti-UV
Front Window
Manual
Pre-filter
Polyester fiber
HEPA Filter
99.995% efficiency at 0.3μm
Airflow Velocity
0.3~0.5m/s
Noise
≤65dB
Max Opening
400mm
UV Lamp
20W*1
LED Lamp
8W*1
Illumination
≥350lx
Caster
Footmaster caster
Waterproof Socket
One, total load≤500W
Consumption
650W / 650W / 700W / 850W
Standard Accessory
UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Package Size(W*D*H)
950*950*1300mm / 1150*950*1300mm / 1350*950*1300mm / 1650*950*1300mm
Gross Weight
90kg / 110kg / 130kg / 150kg
