Laminar Flow Cabinet

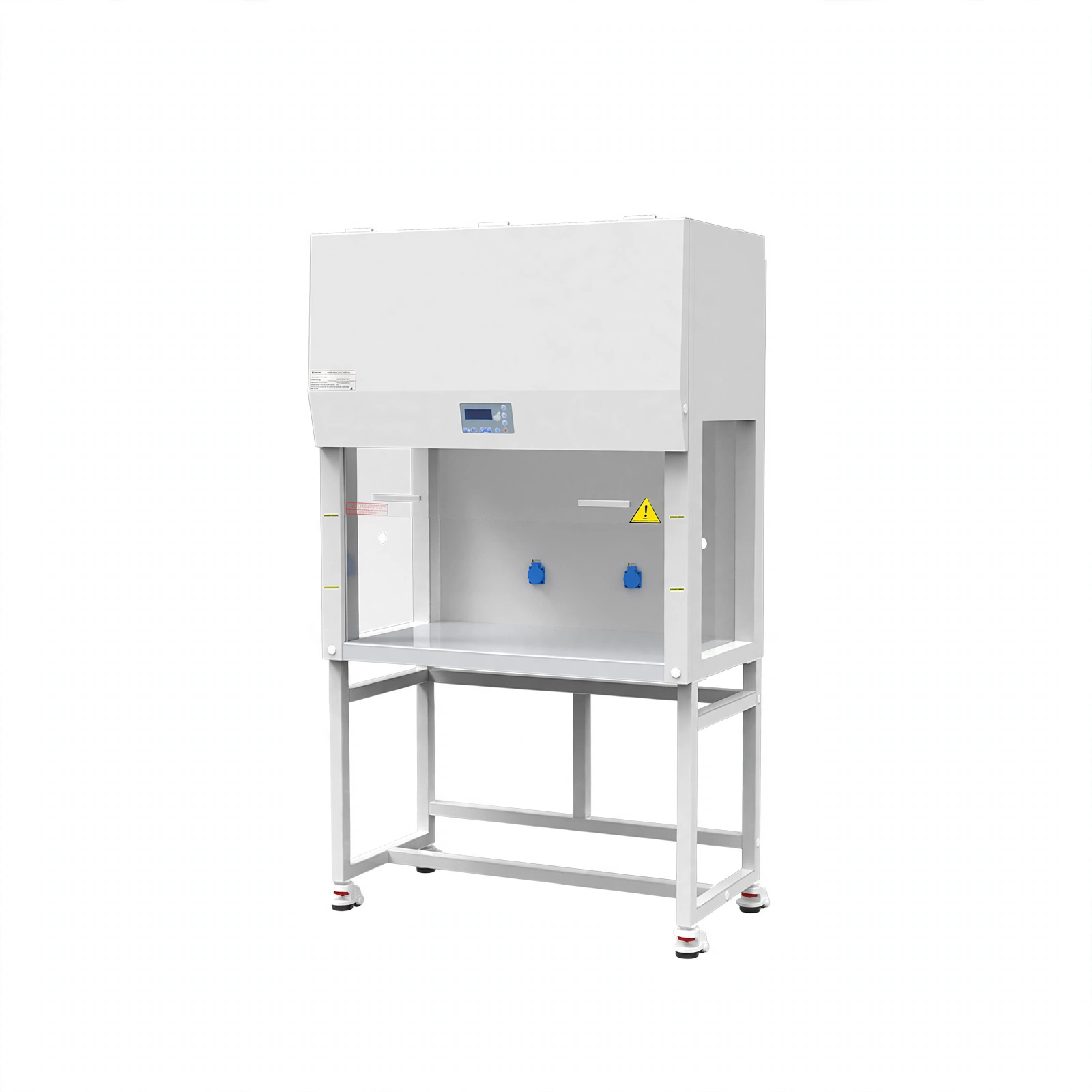

Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC

Model BBS-V680, BBS-V800, BBS-DDC, BBS-SDC

Laminar flow cabinet is an equipment which creates partial particles-free environment. Air flow pattern includes horizontal and vertical type, this laminar flow cabinet is vertical type.

Power
160W / 350W / 150W /…
Noise
<65dB
Dimensions
680*410*1160mm / 802*…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model BBS-V680 BBS-V800 BBS-DDC BBS-SDC
External Size(W*D*H) 680*410*1160mm 802*650*1640mm 1060*620*1850mm 1460*620*1850mm
Internal Size(W*D*H) 630*375*615mm 800*530*540mm 935*530*650mm 1335*530*650mm
Work Surface
Height 		/ 750mm 750mm 750mm
Display

LED display

LCD display

Airflow Velocity

Average of 0.3~0.5m/s, air speed adjustable

Average of 0.3~0.45m/s, air speed adjustable

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel(except model BBS-V680)

Pre-filter

Polyester fiber, washable

HEPA Filter

99.995% efficiency at 0.3μm

Noise

<65dB

Front Window /

Manual, 5mm toughened glass, anti-UV

Max Opening / 490mm 400mm 400mm
Illuminating Lamp Fluorescent lamp
8W*1 		LED lamp
8W*1 		LED lamp
12W*1 		LED lamp
16W*1

UV Lamp

15W*1 20W*1 20W*1 40W*1

Emission of 253.7 nanometers

Consumption 160W 350W 150W 250W
Standard Accessory Fluorescent lamp

UV lamp*2
Water&gas tap

LED lamp
UV lamp*2
Base stand 		LED lamp
UV lamp*2
Base stand 		LED lamp
UV lamp*2
Base stand
Optional Accessory /

Electric height adjustable base stand

Caster /

Universal wheel with leveling feet

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Gross Weight 75kg 116kg 177kg 224kg
Package Size(W*D*H) 840*570*1360mm 960*930*1200mm 1235*920*1355mm 1635*920*1355mm
The details

Specifications

Model
BBS-V680 / BBS-V800 / BBS-DDC / BBS-SDC
External Size(W*D*H)
680*410*1160mm / 802*650*1640mm / 1060*620*1850mm / 1460*620*1850mm
Internal Size(W*D*H)
630*375*615mm / 800*530*540mm / 935*530*650mm / 1335*530*650mm
Work SurfaceHeight
/ / 750mm / 750mm / 750mm
Display
LED display / LCD display / LCD display / LCD display
Airflow Velocity
Average of 0.3~0.5m/s, air speed adjustable / Average of 0.3~0.45m/s, air speed adjustable / Average of 0.3~0.45m/s, air speed adjustable / Average of 0.3~0.45m/s, air speed adjustable
Material
Main Body: Cold-rolled steel with anti-bacteria powder coating
Material
Work Table: 304 stainless steel(except model BBS-V680)
Pre-filter
Polyester fiber, washable
HEPA Filter
99.995% efficiency at 0.3μm
Noise
<65dB
Front Window
/ / Manual, 5mm toughened glass, anti-UV / Manual, 5mm toughened glass, anti-UV / Manual, 5mm toughened glass, anti-UV
Max Opening
/ / 490mm / 400mm / 400mm
Illuminating Lamp
Fluorescent lamp8W*1 / LED lamp8W*1 / LED lamp12W*1 / LED lamp16W*1
UV Lamp
15W*1 / 20W*1 / 20W*1 / 40W*1
UV Lamp
Emission of 253.7 nanometers
Consumption
160W / 350W / 150W / 250W
Standard Accessory
Fluorescent lamp UV lamp*2Water&gas tap / LED lampUV lamp*2Base stand / LED lampUV lamp*2Base stand / LED lampUV lamp*2Base stand
Optional Accessory
/ / Electric height adjustable base stand / Electric height adjustable base stand / Electric height adjustable base stand
Caster
/ / Universal wheel with leveling feet / Universal wheel with leveling feet / Universal wheel with leveling feet
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight
75kg / 116kg / 177kg / 224kg
Package Size(W*D*H)
840*570*1360mm / 960*930*1200mm / 1235*920*1355mm / 1635*920*1355mm
