Laminar Flow Cabinet

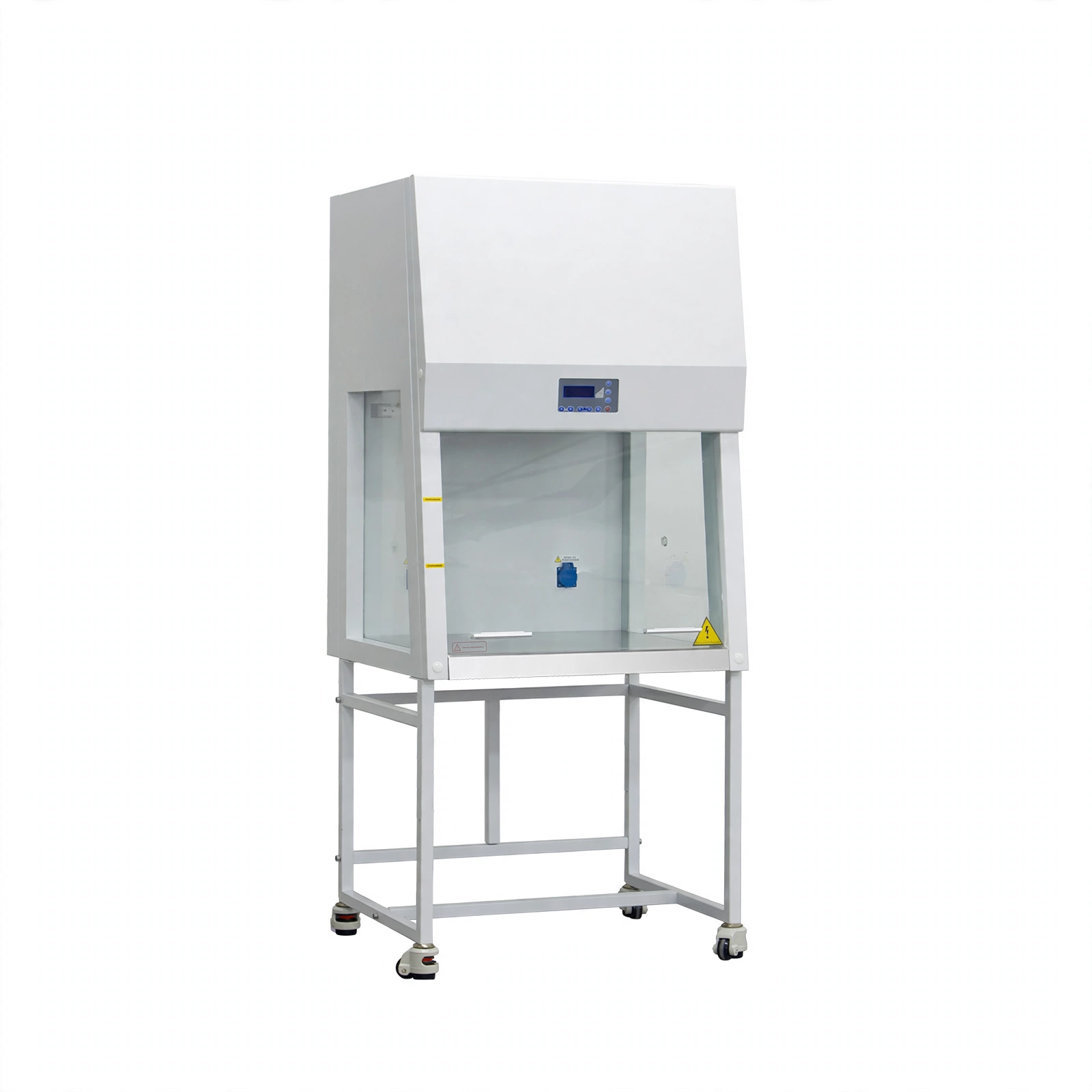

Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X

Model BBS-V800-X BBS-V1300-X BBS-V1800-X

The Vertical Laminar Flow Cabinet is a high-performance clean air workstation designed to protect samples from contamination by providing a sterile environment. This cabinet directs HEPA-filtered air in a vertical unidirectional flow, ensuring that the working area remains free of airborne particles.

Power
650W / 750W / 900W
Noise
≤65dB
Dimensions
800*665*1850mm / 1300…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. Adjustable air speed: 8 levels.

2. 7° slope front ergonomics design, fatigue-free working posture.

3. Interlock function: UV lamp and blower, LED lamp.

4. UV lamp starts after 5 seconds delay. Protect operator safety.

5. With UV lamp, fan appointment timing function.

6. Set the safe height of the front window opening, and alarm when it is lower or higher than the safe height. Ensure that the performance of the equipment is stable.

7. Footmaster casters design, convenient cabinet movement and fixation.

Technical Parameters:

Model BBS-V800-X BBS-V1300-X BBS-V1800-X
External Size(W*D*H) 800*665*1850mm 1300*710*1850mm 1800*710*1850mm
Internal Size(W*D*H) 700*575*625mm 1200*575*625mm 1700*575*625mm
Work Surface Height

750mm
Max Opening

400mm
Display

LCD display
Airflow Velocity

0.3~0.45m/s
Material

Working Area: 304 stainless steel

Main Body: 1.2mm cold-rolled steel with anti-bacteria powder coating

Front Window: 5mm toughened glass, anti-UV
Pre-Filter

Polyester fiber
HEPA Filter

One, 99.995% efficiency at 0.3μm
Noise

≤65dB(A)
Illumination

≥300lx
Waterproof Sockets

Two sockets, Max. Power: 500W
Power Supply

AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Consumption 650W 750W 900W
LED Lamp 8W*1 12W*1 16W*1
UV Lamp 20W*1 30W*1 40W*1
Standard Accessories

Base stand, LED lamp, UV lamp, Waterproof socket*2
Optional Accessories

/

 Camera, scanner, tablet computer
Package Size(W*D*H) 940*980*1350mm 1440*980*1350mm 1940*980*1350mm
Gross Weight 140kg 220kg 280kg
The details

Specifications

Model
BBS-V800-X / BBS-V1300-X / BBS-V1800-X
External Size(W*D*H)
800*665*1850mm / 1300*710*1850mm / 1800*710*1850mm
Internal Size(W*D*H)
700*575*625mm / 1200*575*625mm / 1700*575*625mm
Work Surface Height
750mm
Max Opening
400mm
Display
LCD display
Airflow Velocity
0.3~0.45m/s
Material
Working Area: 304 stainless steelMain Body: 1.2mm cold-rolled steel with anti-bacteria powder coatingFront Window: 5mm toughened glass, anti-UV
Pre-Filter
Polyester fiber
HEPA Filter
One, 99.995% efficiency at 0.3μm
Noise
≤65dB(A)
Illumination
≥300lx
Waterproof Sockets
Two sockets, Max. Power: 500W
Power Supply
AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Consumption
650W / 750W / 900W
LED Lamp
8W*1 / 12W*1 / 16W*1
UV Lamp
20W*1 / 30W*1 / 40W*1
Standard Accessories
Base stand, LED lamp, UV lamp, Waterproof socket*2
Optional Accessories
/ / Camera, scanner, tablet computer / Camera, scanner, tablet computer
Package Size(W*D*H)
940*980*1350mm / 1440*980*1350mm / 1940*980*1350mm
Gross Weight
140kg / 220kg / 280kg
